Compaq Deskpro EP Series of Personal Computers 4-23
10. Press in on the tabs to release the vertical drivelock from the chassis, then lift it up and
out of the system while at the same time rotating the drivelock slightly to clear the
travel slots at the bottom of the drivelock.
11. Remove the spring from the post (see inset).

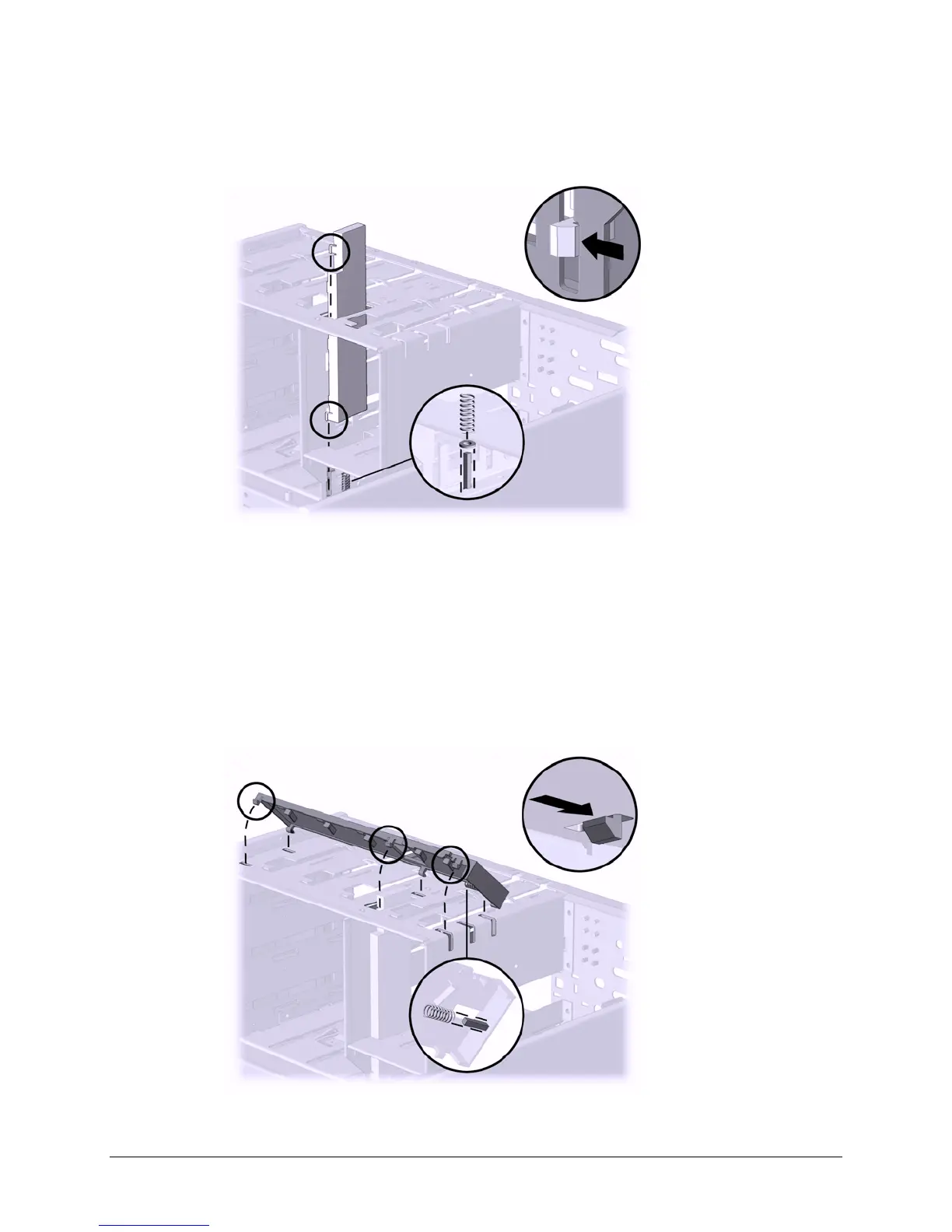

Removing the Vertical Drivelock
To reinstall the vertical drivelock, reverse the previous procedure.
To reinstall the horizontal drivelock:
1. Insert the left side of the drivelock (with the rounded tabs) into the slots on the drive
cage.
2. Place the washer on the middle tab on the underside of the drivelock.
3. Compress the spring, then lower the drivelock onto the drive cage until it snaps into
place.
Reinstalling the Drivelocks
