Compaq Despro EP Series of Personal Computers 5-3

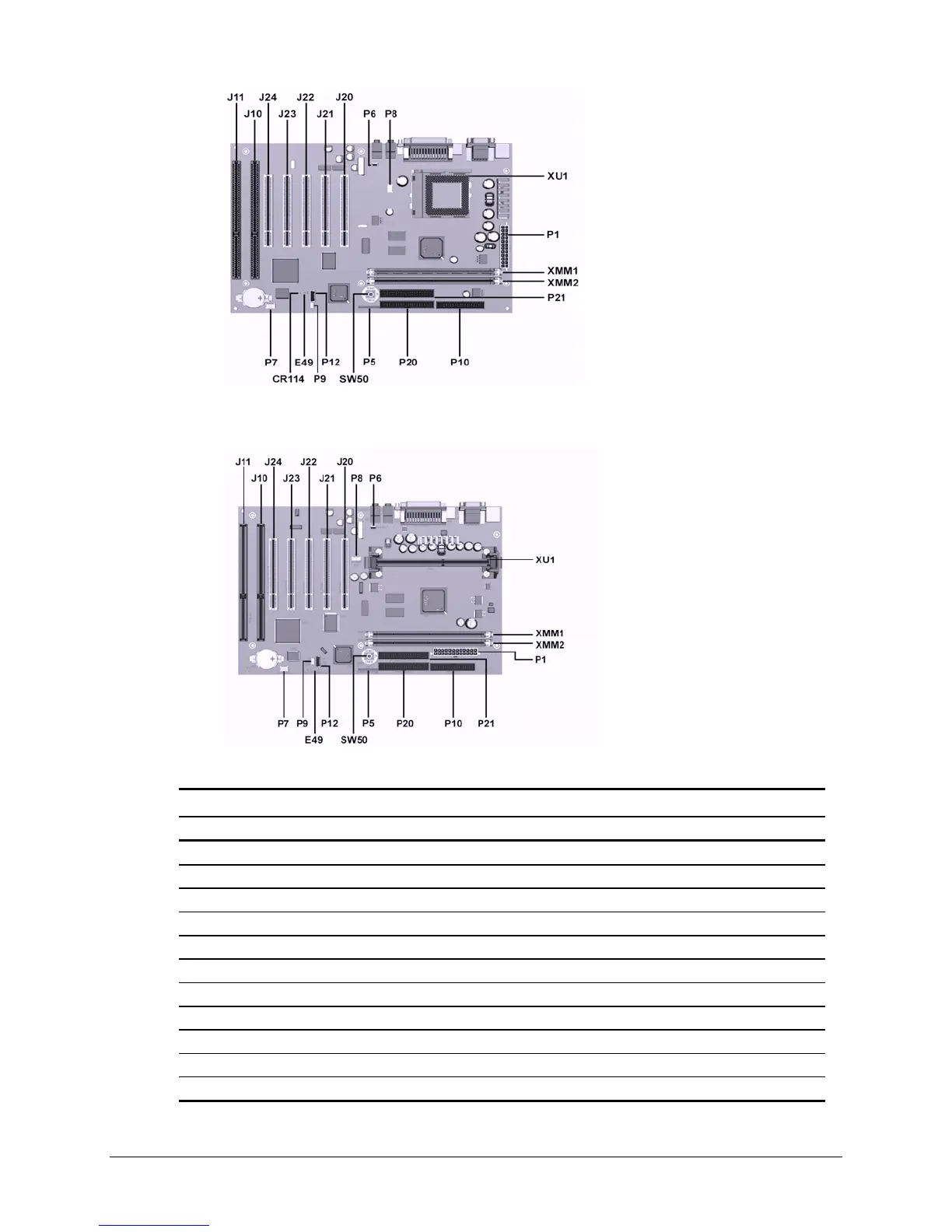

System Board Overview - Intel 810 (Two-DIMM Board)
System Board Overview - Intel 810e (Two-DIMM Board)
Connectors, Jumpers, and Switches - Intel 810/810e (Two-DIMM Board)
Item Description Item Description
CR114 AUX LED P1 Power Supply Connector
E49 Clear Password P5 Power Switch and LED Connector
XMM1 DIMM 1 Expansion Slot P6 Chassis Fan
XMM2 DIMM 2 Expansion Slot P7 CD-In Header
J10 ISA Dual Expansion Slot 1 (combo) P8 Chassis Fan Connector
J11 ISA Expansion Slot 2 P9 Wake on LAN Header
J20 PCI Expansion Slot 1 P10 Diskette Drive Connector
J21 PCI Expansion Slot 2 P20 IDE Connector (primary)
J22 PCI Expansion Slot 3 P21 IDE Connector (secondary)
J23 PCI Expansion Slot 4 XU1 Processor Connector
J24 PCI Dual Expansion Slot 5 (combo) SW50 CMOS Button
