Removal and Replacement Procedures
3. Route the drive activity light/battery power light cable and
speaker cable out of the retaining clips in the top cover 1
and 2 (Figure 5-25).
4. Remove the strip of tape 3 that secures the speaker assembly
and TouchPad cables to the top cover and TouchPad
assembly.
5. Remove the PM2.0 × 4.0 screw 4 that secures the speaker
assembly to the top cover.
6. Lift the speaker assembly straight up 5 and remove it from
the top cover.

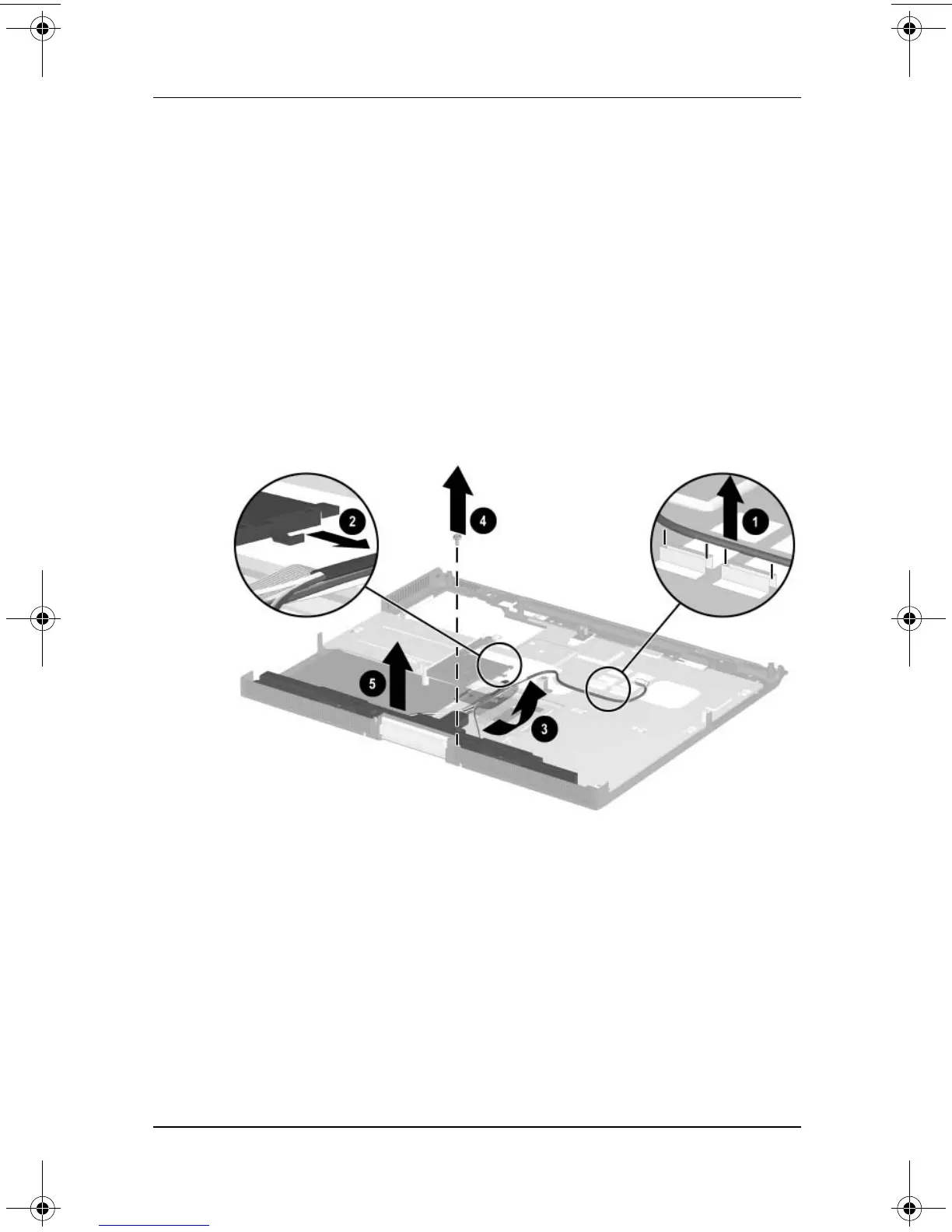

Figure 5-25. Removing the Speaker Assembly
Reverse the above procedure to install the speaker assembly.
