5–16 Maintenance and Service Guide
Removal and Replacement Procedures
5.8 LED Cover
1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer bottom side up with the rear panel facing
forward.
3. Remove the two black PM2.0 × 10.0 screws that secure the
LED cover to the base enclosure (Figure 5-13).

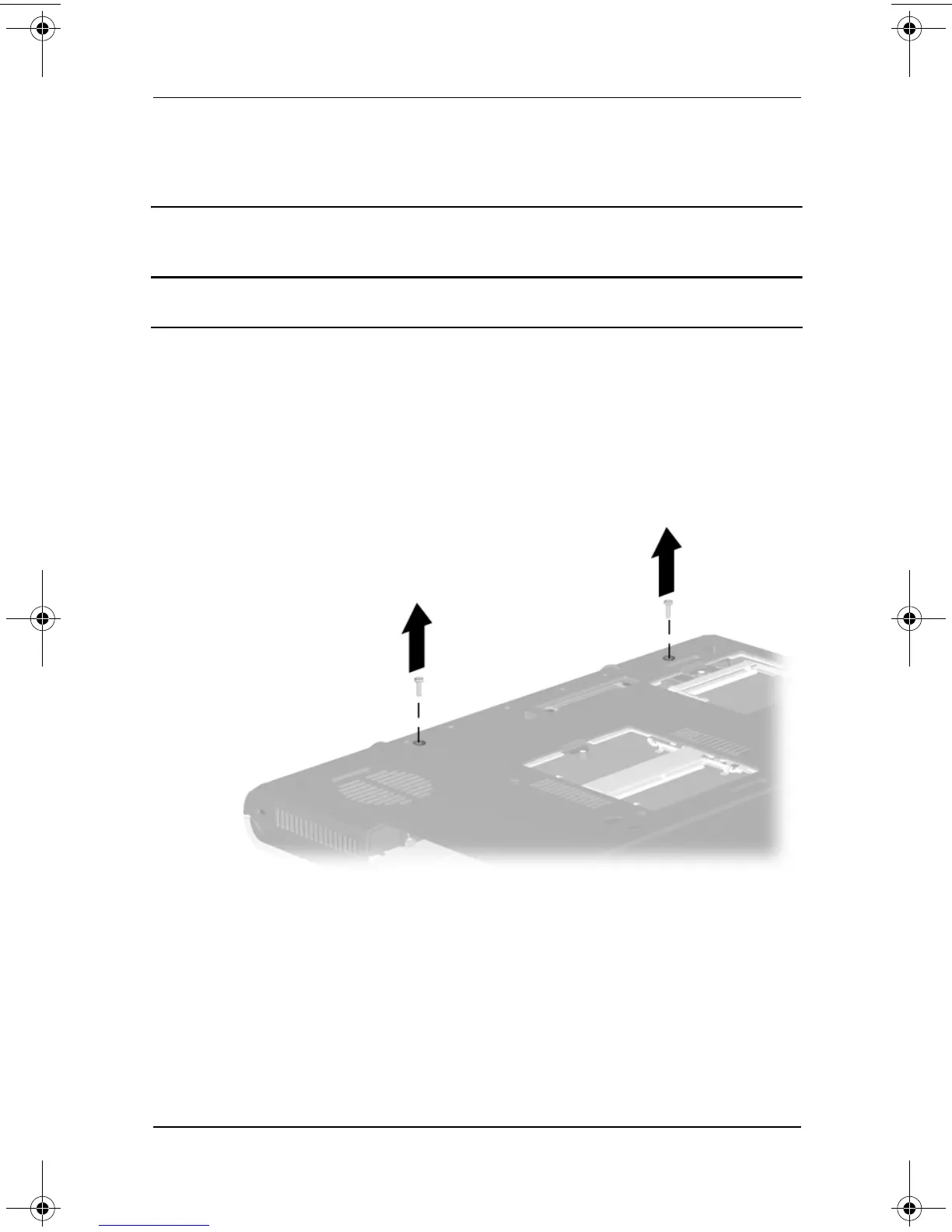

Figure 5-13. Removing the LED Cover Screws
4. Turn the computer top side up with the front facing forward.
5. Open the computer.
LED Cover
Spare Part Number Information
LED cover 288503-001
