Removal and Replacement Procedures
Maintenance and Service Guide 5–17
6. Use a flat-bladed tool to pry forward on the four clips on the
LED cover 1 (Figure 5-14).
7. Press the esc and F1 keys to reveal the left notch 2 in the LED
cover.
8. Insert a flat-bladed tool into the left notch and lift the left side
of the LED cover 3.
9. Press the
Pause and Del keys to reveal the right notch 4 in the
LED cover.
10. Insert a flat-bladed tool into the right notch and lift the right
side of the LED cover 5.
11. Remove the LED cover 6.

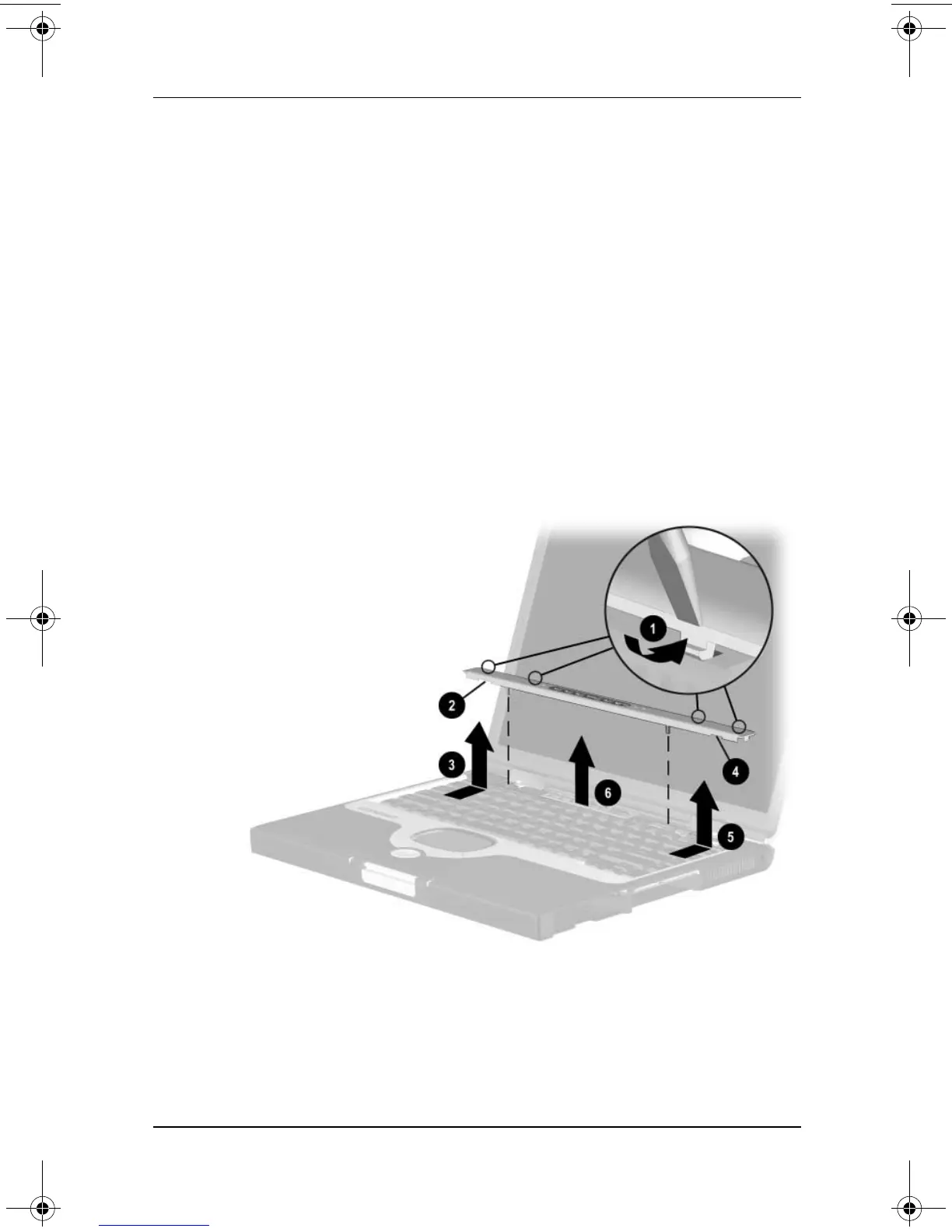

Figure 5-14. Removing the LED Cover
Reverse the above procedure to install the LED cover.
