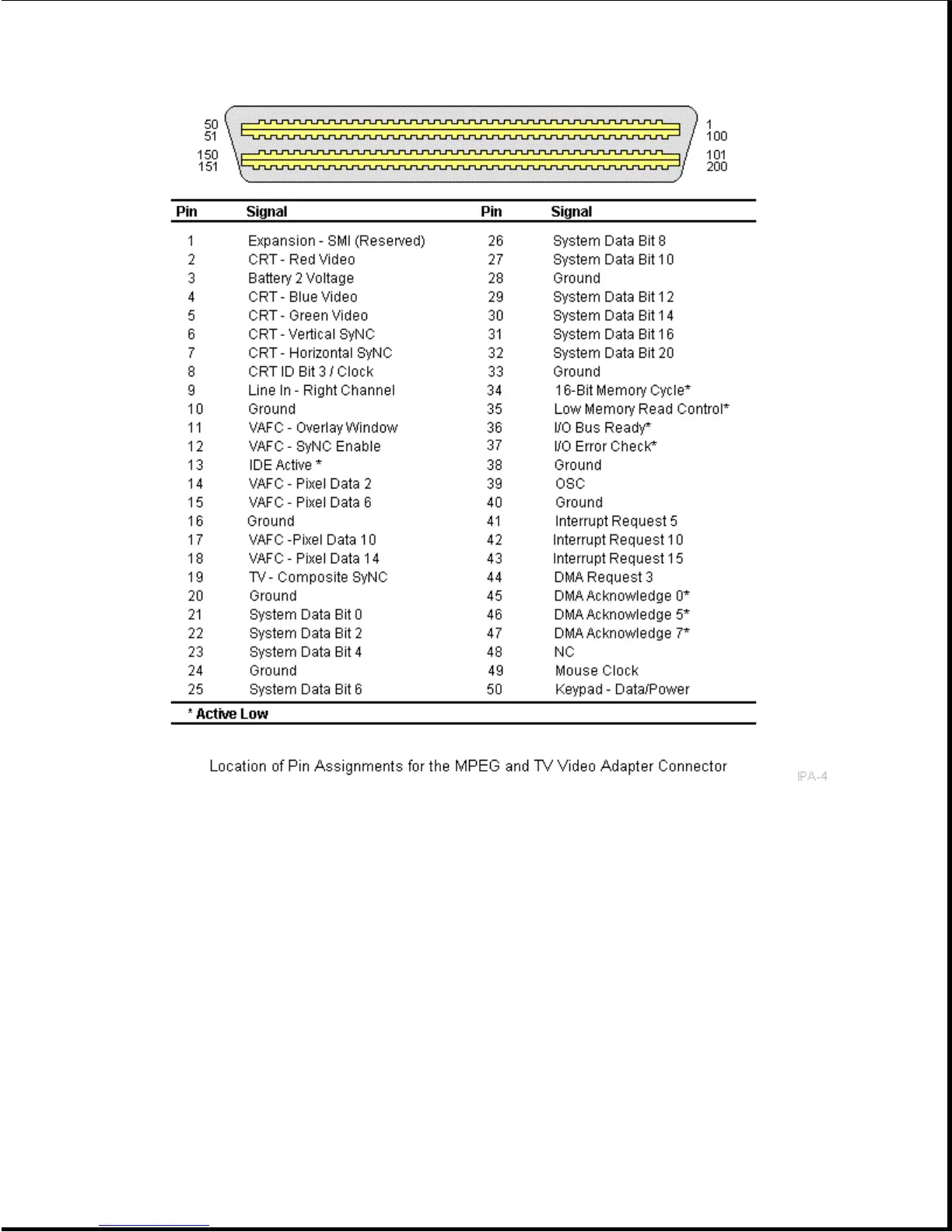

Table A-9. MPEG and TV Video Adapter Connector
===========================================================================
Pin Signal
===========================================================================
1 Expansion - SMI (Reserved)
2 CRT - Red Video
3 Battery 2 Voltage
4 CRT- Blue Video
5 CRT- Green Video
6 CRT- Vertical SyNC
7 CRT- Horizontal SyNC
8 CRT ID Bit 3 / Clock
