13 AC power connector
===========================================================================

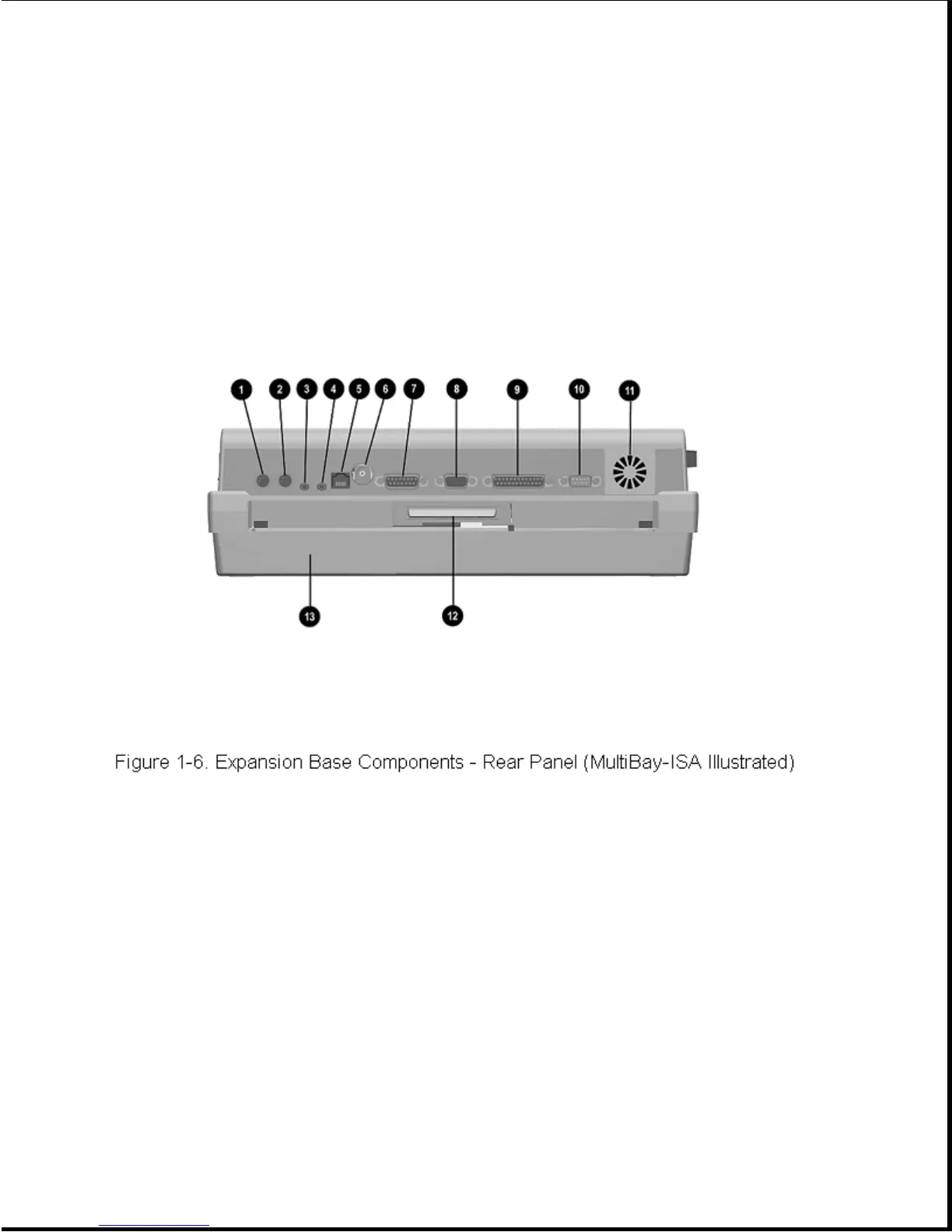

The external components on the rear panel of the expansion base are shown
in Figure 1-6 and described in Table 1-9.
Table 1-9. Expansion Base Components - Rear Panel
===========================================================================
Item Description
===========================================================================
1 External mouse connector
2 External keyboard connector
3 Stereo speaker/headphone jack
4 Stereo line in jack
5 Ethernet RJ-45 connector
6 Ethernet BNC connector
7 MIDI/Game connector
8 External monitor connector
