Identifying External Hardware
Hardware Guide 1–15

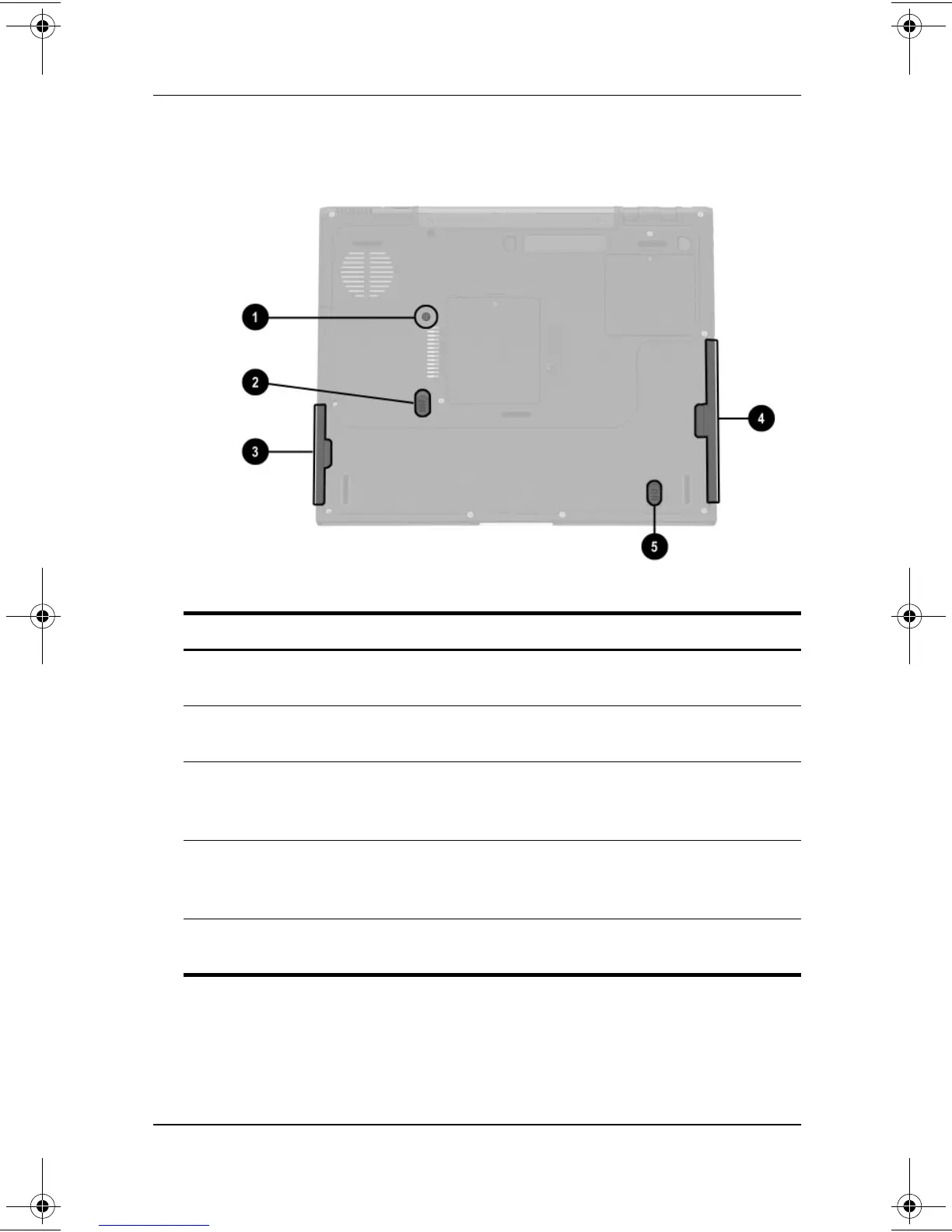

Bay Components
Underside Components: Bay Components
1
Hard drive bay retaining
screw
Secures the primary hard drive in the
hard drive bay.
2
Battery release latch Releases the primary battery pack
from the battery bay.
3
Battery bay recess Provides a grip area for removing
a primary battery pack from the
battery bay.
4
MultiBay recess Provides a grip area for removing an
optional MultiBay device from the
MultiBay.
5
MultiBay release latch Releases an optional MultiBay device
from the MultiBay.
