Maintenance and Service Guide
Compaq Presario EZ2000 Series Computers
Product Description Troubleshooting Illustrated Parts Catalog
Home Removal & Replacement Jumper & Switch Information Specifications
DISASSEMBLY
SEQUENCE
Electrostatic
Discharge
Service
Considerations
Preparation
for
Disassembly
Serial Number
Left Easy
Access Panel
Right Easy
Access Panel
Memory
Module
Top Access
Panel
Rear Access
Panel
Fax-Modem
Board
Mass Storage
Devices
Fan/Power
Supply
Assembly
I/O Board
LCD Display
Board
Speaker
System Board
and
Components
Chassis Base
REMOVAL & REPLACEMENT

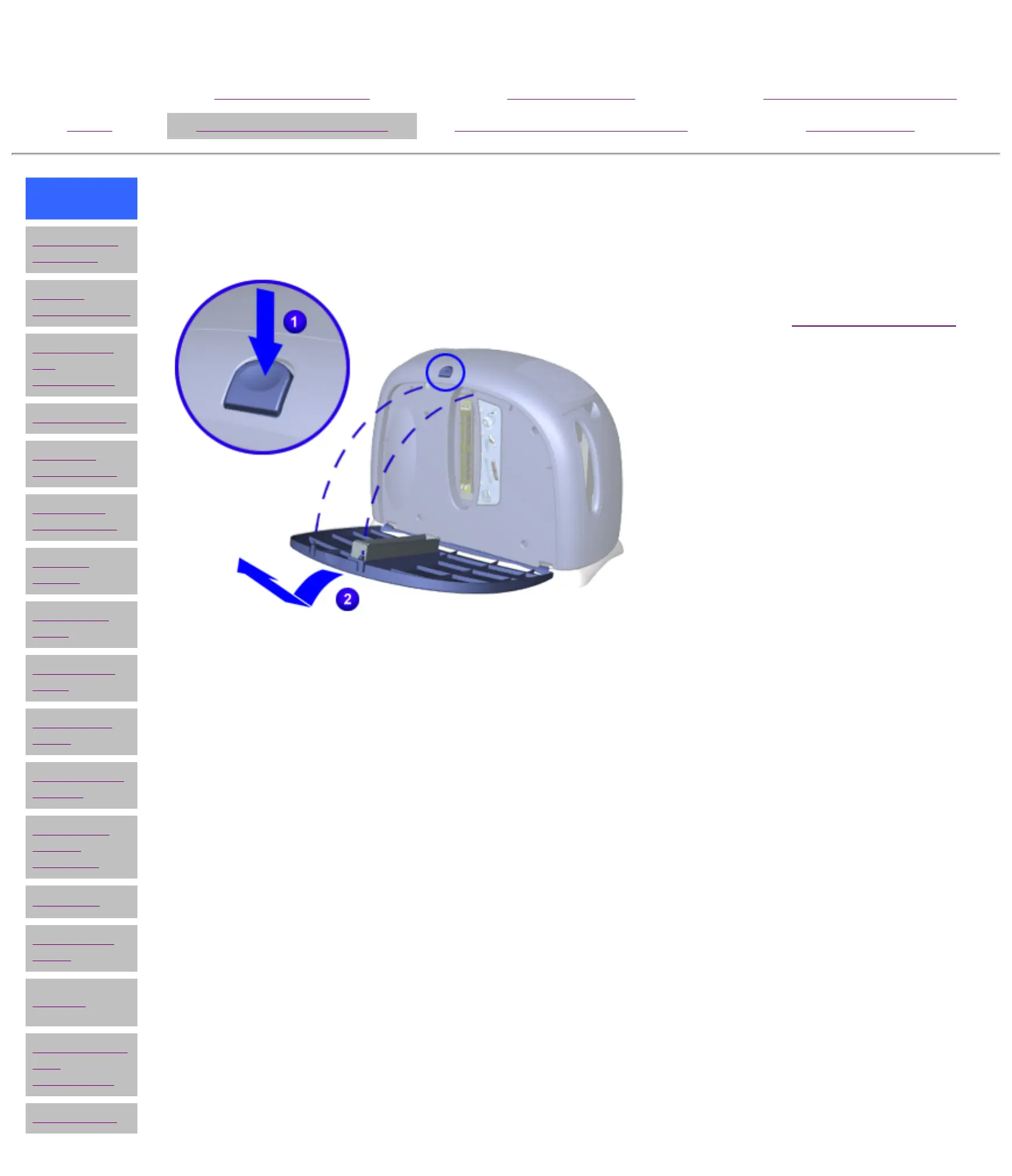

Removing the Right Easy Access Panel
Removal
1
Perform the
preparation procedures.
2
Push the (1) panel release button and
open the right side access panel.
3
Lift the (2) Right Easy Access Panel
off the hinges on the chassis.
Replacement
To replace the Right Easy Access
Panel, reverse this procedures.
