REMOVAL & REPLACEMENT
Removing the LCD Display Broad
Removal
1
Perform preparation
procedures.
2
Remove the Left Easy Access
Panel.
3
Remove the Top Access
cover.
4

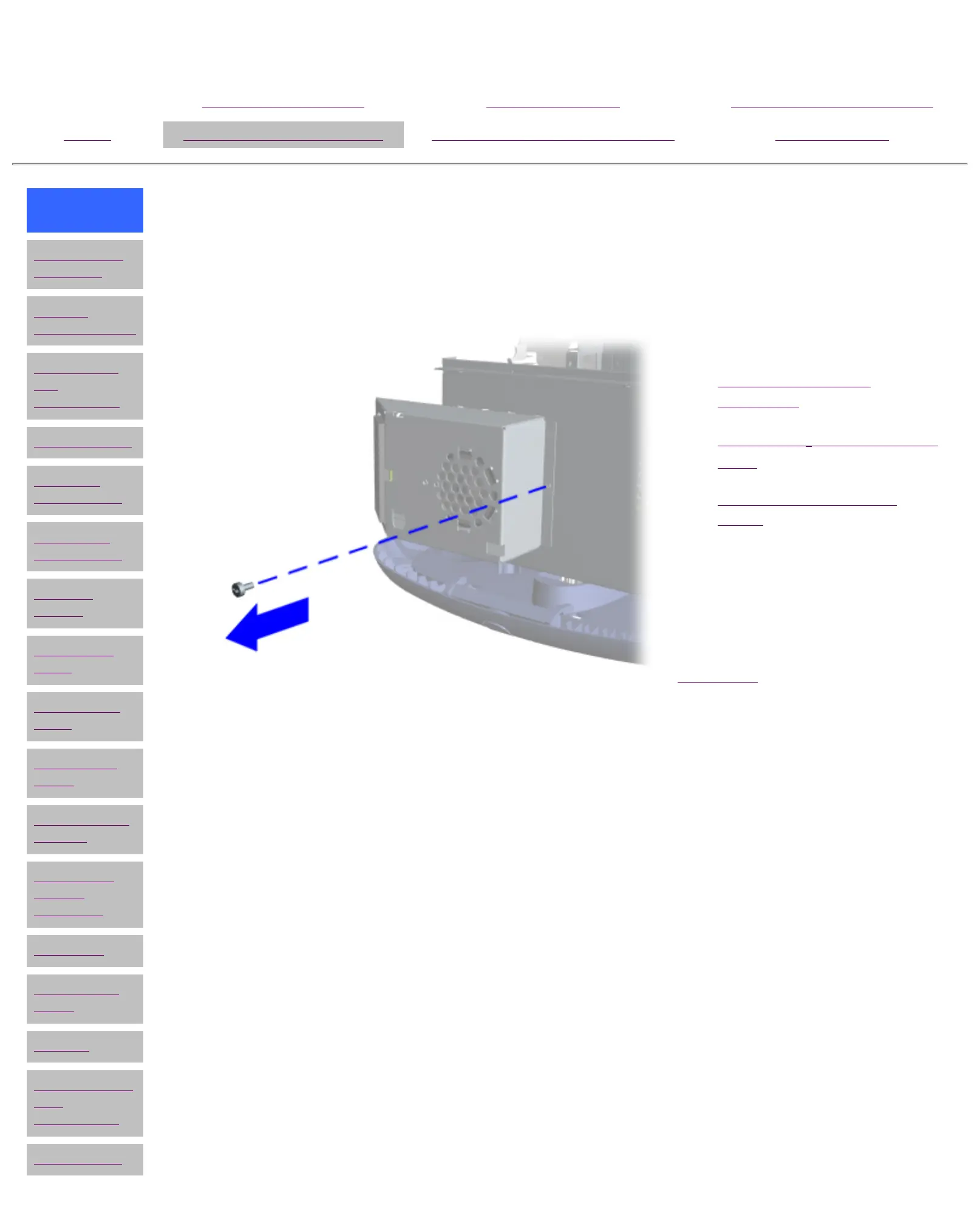

Place the unit on right side,
remove one screw from the
top of the LCD display cage
and slide the cage to the front
of the unit to remove.
