Compaq UPS R3000 XR Maintenance and Service Guide
2.
Obtain access to the electronics module by pulling on both ends of the front bezel
1
to
remove it.
3.
Locate the two screws
2
on the electronics module
3
.
1
3
2

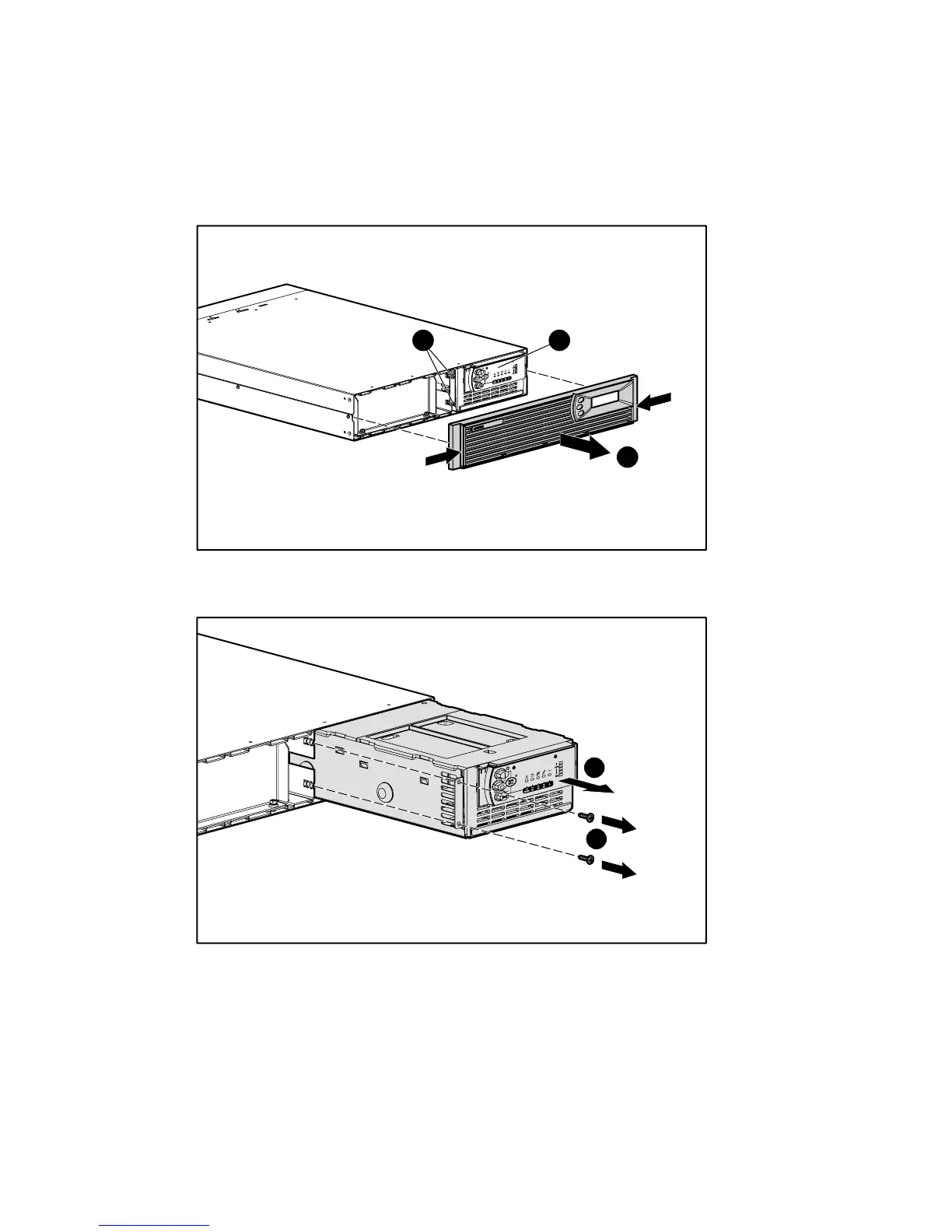

Figure 3-10. Removing the front bezel
4.
Remove the two screws
1
and pull out the electronics module
2
.
1
2
Figure 3-11. Removing the electronics module
