3-18
Compaq UPS R3000 XR Maintenance and Service Guide
2. Obtain access to the battery packs by pulling on both ends of the ERM front bezel to
remove it.

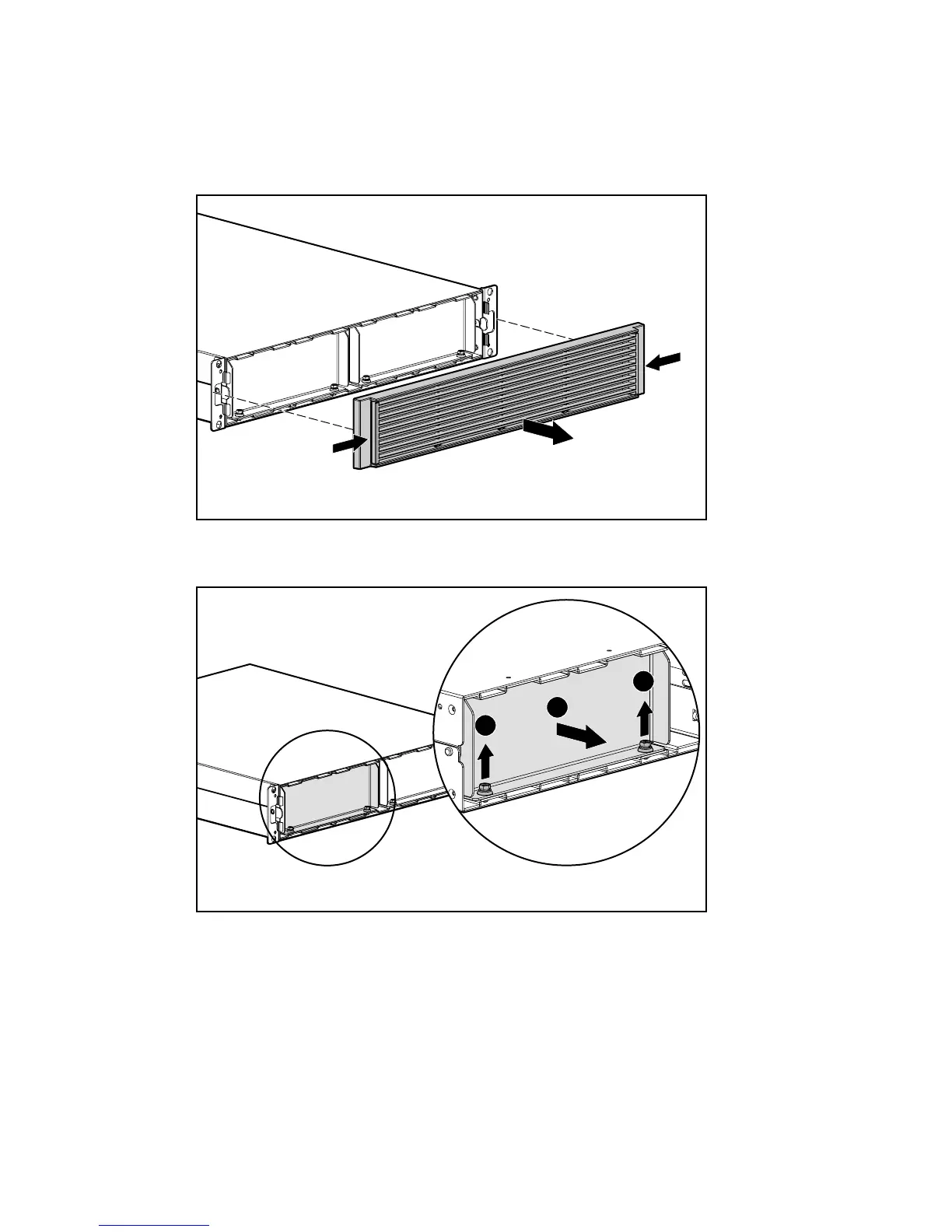

Figure 3-18. Removing the ERM front bezel
3. Remove two screws
1
from each metal battery bracket and lift off the battery brackets
2
.
1
1
2
Figure 3-19. Removing the battery bracket
