8-35
HOW TO USE YOUR CARAVAN’S EQUIPMENT
MPK Rooflight
Instructions

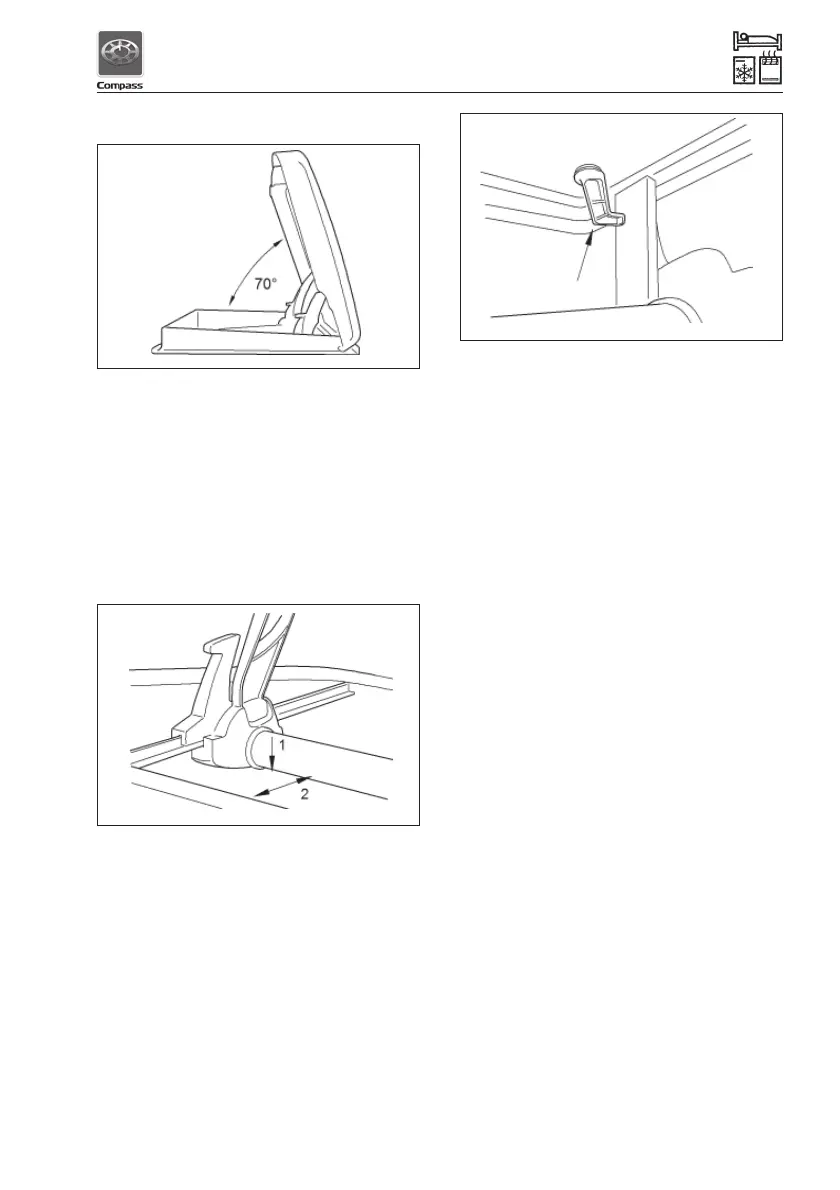

The rooflight can be raised to an opening
angle, on one side, to a maximum of 70° (Fig
1). To open, pull the operating bar down
unlocking the mechanism. Now move the bar
forwards (in direction of travel) and the
rooflight will open; all the time holding the bar
down. As soon as the operating bar is
released it will lock into position and the
dome will stay at this angle (Fig 2).
To close the rooflight, pull the operating bar
down, unlocking the mechanism. Now, move
the bar backwards (against the direction of
travel) and the rooflight will close; all the time
holding the bar down. Once you reach the
end position the hooks will lock the rooflight
automatically. Release the operating bar and
the rooflight will remain closed (Fig 3).
Fig 2
Fig 1
The flynet and the pleated blind can be
operated together or separately. To open the
rooflight dome both have to be opened.
WARNING: To avoid heat accumulation do
not close blind completely during the day.
Open both pleats when not using the
vehicle.
Before driving
IMPORTANT: All rooflights must be locked
down before travelling. Make sure the flynet
and the blind are in open position to avoid
damage and noise by airflow.
Fig 3
