GETTING STARTED
WATER SYSTEM
High Flow Watermaster Pump with
Intelligent Control (IC)
The Watermaster IC unit is a means of
control for the Whale Watermaster high flow
system, which allows it to operate without the
need for pressure switch adjustment. It offers
three key features, eliminates rapid water
pulsation, ensures that the pump turns off at
low battery voltages and in a run-dry situation
when the water supply runs out.
Installation
Please note - The manufacturer cannot be
held responsible for claims arising from
incorrect installation, unauthorised
modification or misuse of this product.
Before installing, please check that the
submersible pump can reach the bottom of
the water container and that there is access
to the back of the socket.
To connect the IC Control Unit (back
of socket)
Step 1 - Switch off the 12V d.c. supply at the
main panel (isolator switch)
Step 2 - Unplug the spade connections on
the water inlet socket - ensuring
that you note the order of wires for
reconnection with the Watermaster
IC (See Fig 1 and Fig 2).

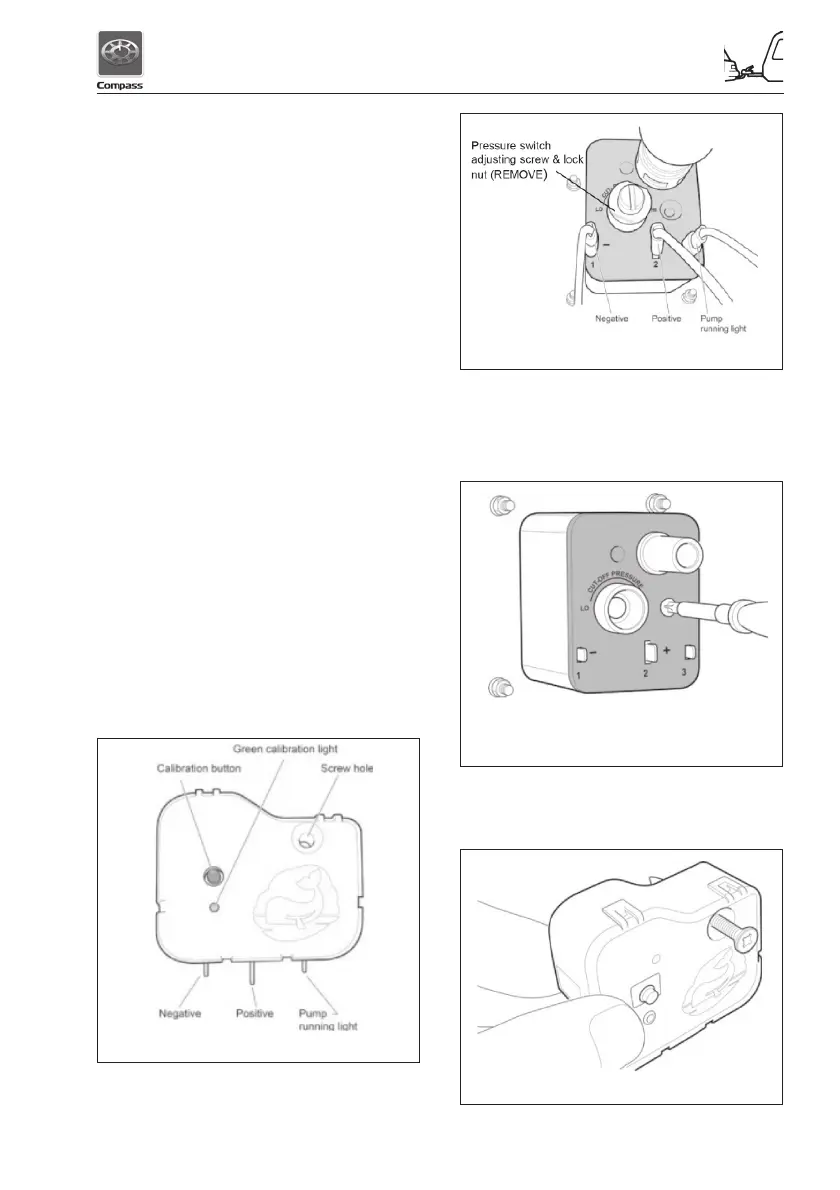

Fig 1 Watermaster IC features
Fig 2 Wiring connections Watermaster socket
Step 3 - Unscrew and remove the pressure
switch adjusting screw and locking
nut (see Fig 2)
Step 4 - Remove securing screw (see Fig 3)
Step 5 - Take Watermaster IC and place
countersunk screw into screw holes
(see Fig 4)
Fig 3 Preparing Watermaster socket for
connecting Watermaster IC and removing the
securing screw
Fig 4 Place securing screw into Watermaster IC
