8-40
HOW TO USE YOUR CARAVAN’S EQUIPMENT
1
2
3
4
5

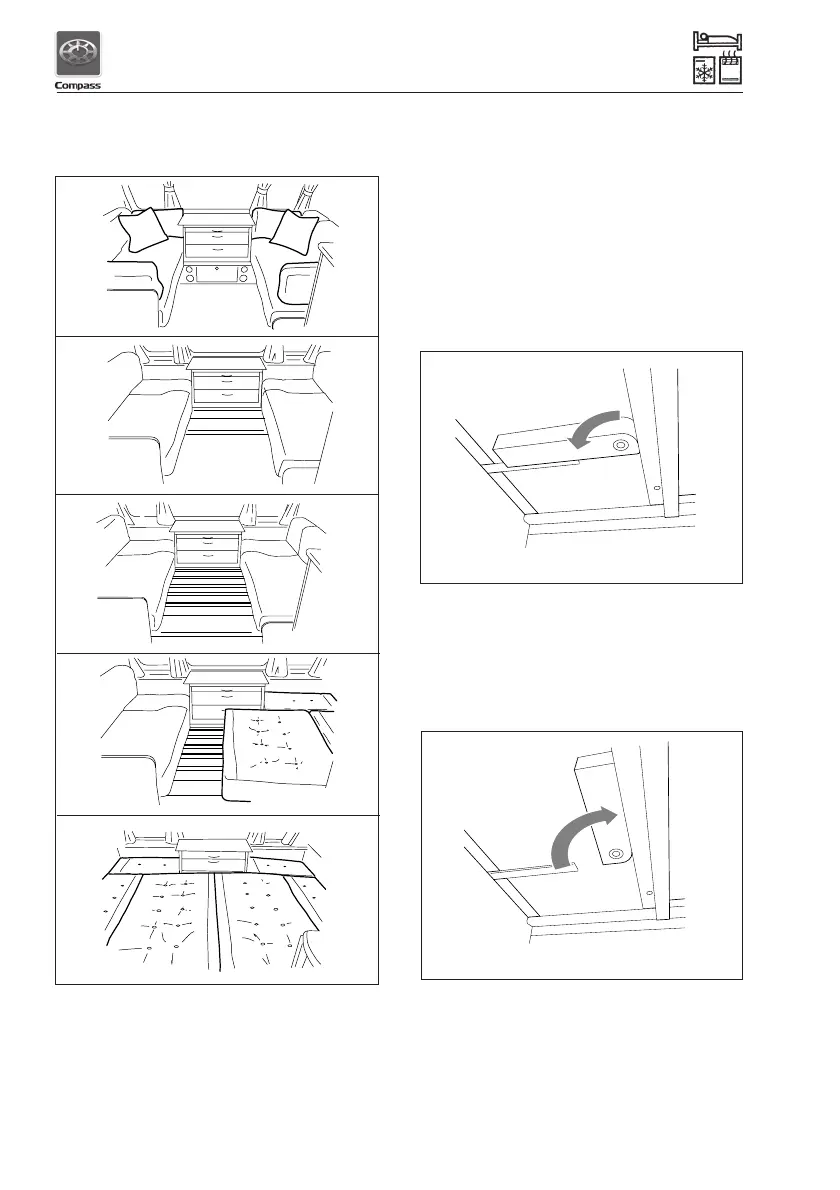

Fig 1
FRONT WRAP ROUND SEATING
(Option)
If you have purchased the wrap round
seating option for your new caravan please
note that the centre seat can be extended by
the use of the locking mechanism which can
be found under this seat.
Pull the slats forward then turn the locking
plate to be in the direction down the caravan
(see Fig 1) in order to secure the front seat in
place.
This will prevent the slats from going back
into the front seat and increase the seated
area.
Please ensure you return the locking plate to
its normal position (see Fig 2) if you wish to
remove the wrap round seating.
Fig 2
Maximum load for the beds
Fixed bunks 100 kgs (17 stone)
Fixed single beds 125 kgs (19
1
/
2
stone)
Double fixed bed 250 kgs (39 stone)
BED MAKE-UP
Parallel Lounge
The two single beds can be easily converted
into a double bed by pulling out the bed slats,
stored beneath the chest of drawers or stored in
the bed slat box at the front/end of the caravan.
Arrange seat cushions.
