18 Compex 24-Port + 1 Expansion Slot Switch
SAS2224B
English

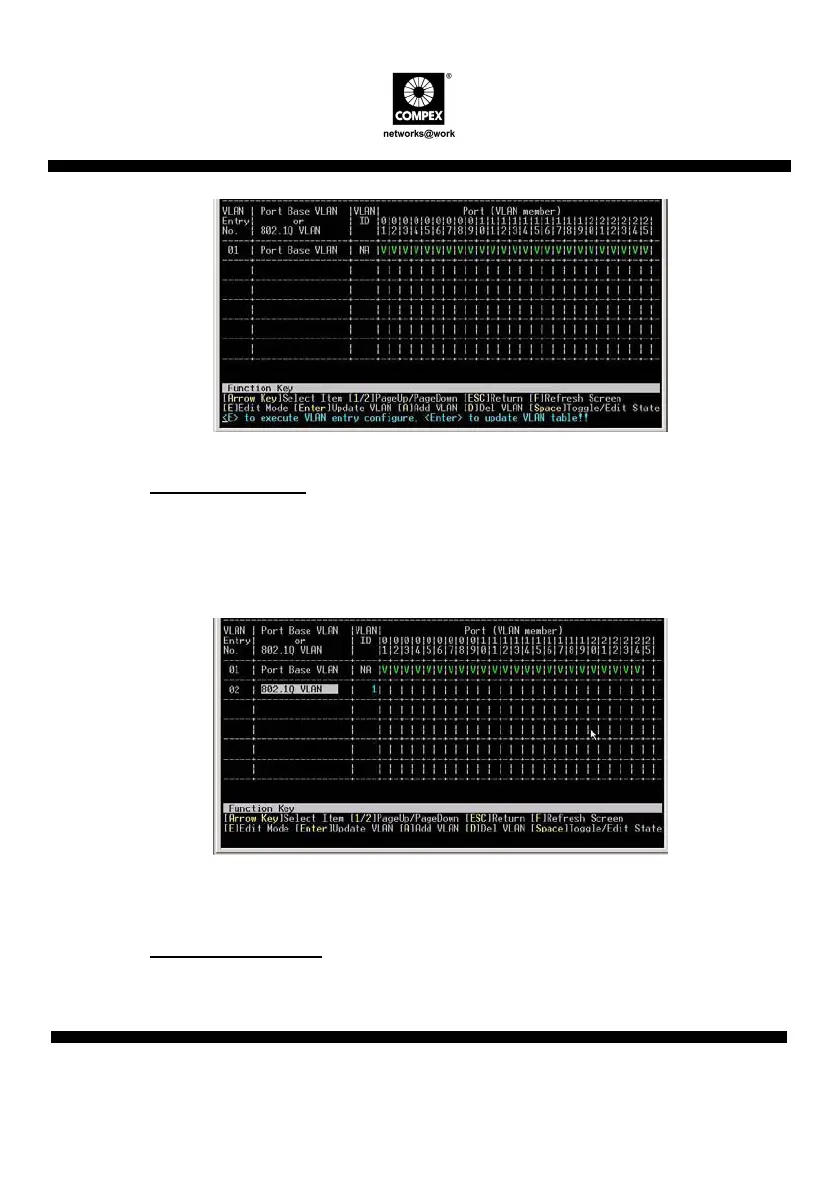

Create a new VLAN
You need to set the configuration environment to Edit mode.
1. Hit on the letter E (indicates that the environment is in edit mode) and then the
letter A to add in a new VLAN entry.
Toggle your spacebar to change the types of VLAN: Port-based or 802.1Q Tagged
For Port-based VLAN
The classification of any incoming packet on each port is defined by the PVID. Compex
SAS2224B uses the PVID to search the VLAN table for a VLAN member.
