22 Compex 24-Port + 1 Expansion Slot Switch
SAS2224B
English

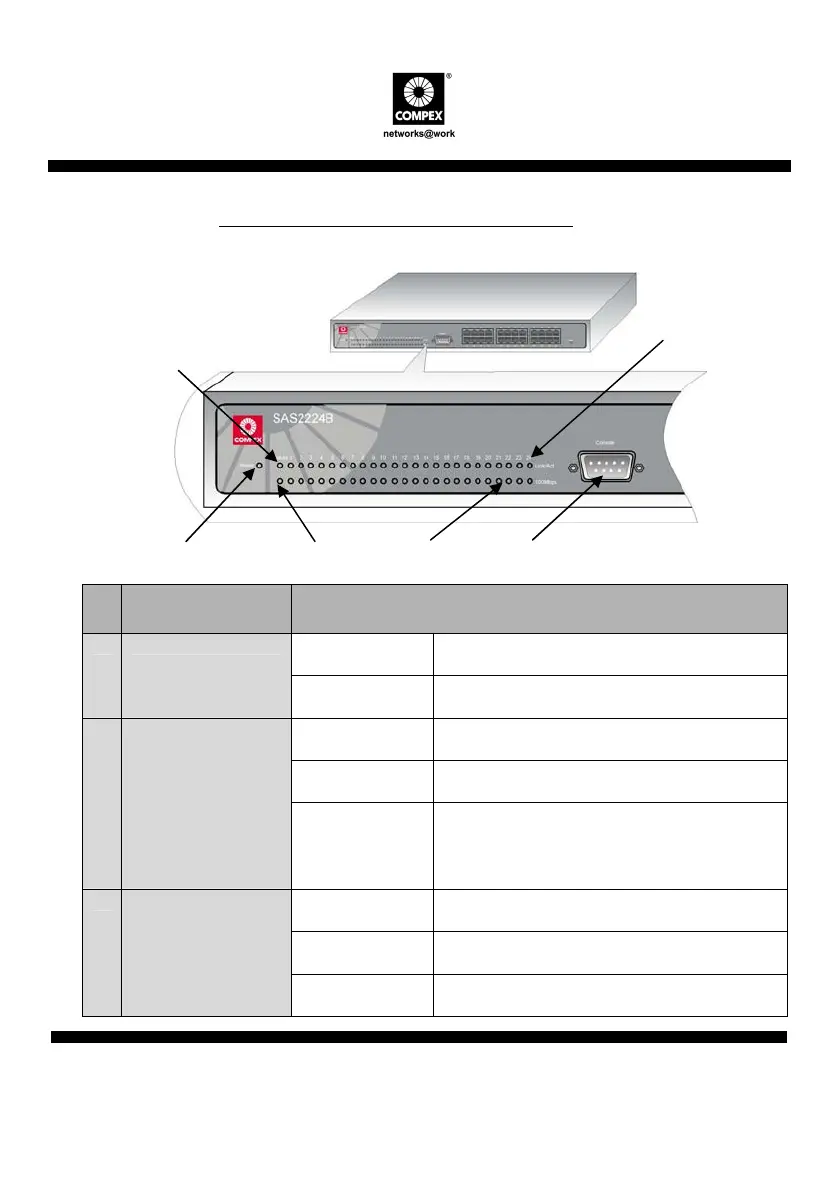

Appendix I Panel Views and Descriptions
Features Status and Indication
Steady Green Power is supplied to the device.
1 Power LED
Off No power is supplied to the device.
Steady Green A module is installed to the switch.
Blinking Green Activity is going on in the network.
2 Link/ACT LED
(For expansion
module)
Off
• No module is connected to the expansion
slot.
• The module is not properly installed.
Steady Green The particular port is connected to the switch.
Blinking Green Activity is going on in the network.
3 Link/ACT LEDs
(For Port 1 to 24)
Off No link is established to the switch.
1 4 5 6
2
3
To Next Page
