19
For Tagged VLAN
The VLAN classification is the first step to be done before VLAN table lookup. To
classify a unique VID value to a received frame is defined as follows:
♦ If the tagged VID is not equal to 0, then tagged VID value is used.
♦ If the tagged VID is equal to 0, then PVID value is used.
After the unique 12-bits VID is classified, Compex SAS2224B will then lookup the
VLAN table, check for the ingress/egress rule and then forward to the valid destination
ports with specified tagging control process.
5. Monitor your Compex SAS2224B via Hyper Terminal
Besides configuring using Hyper Terminal, you can also monitor your network via this
program.
5.1. Overview

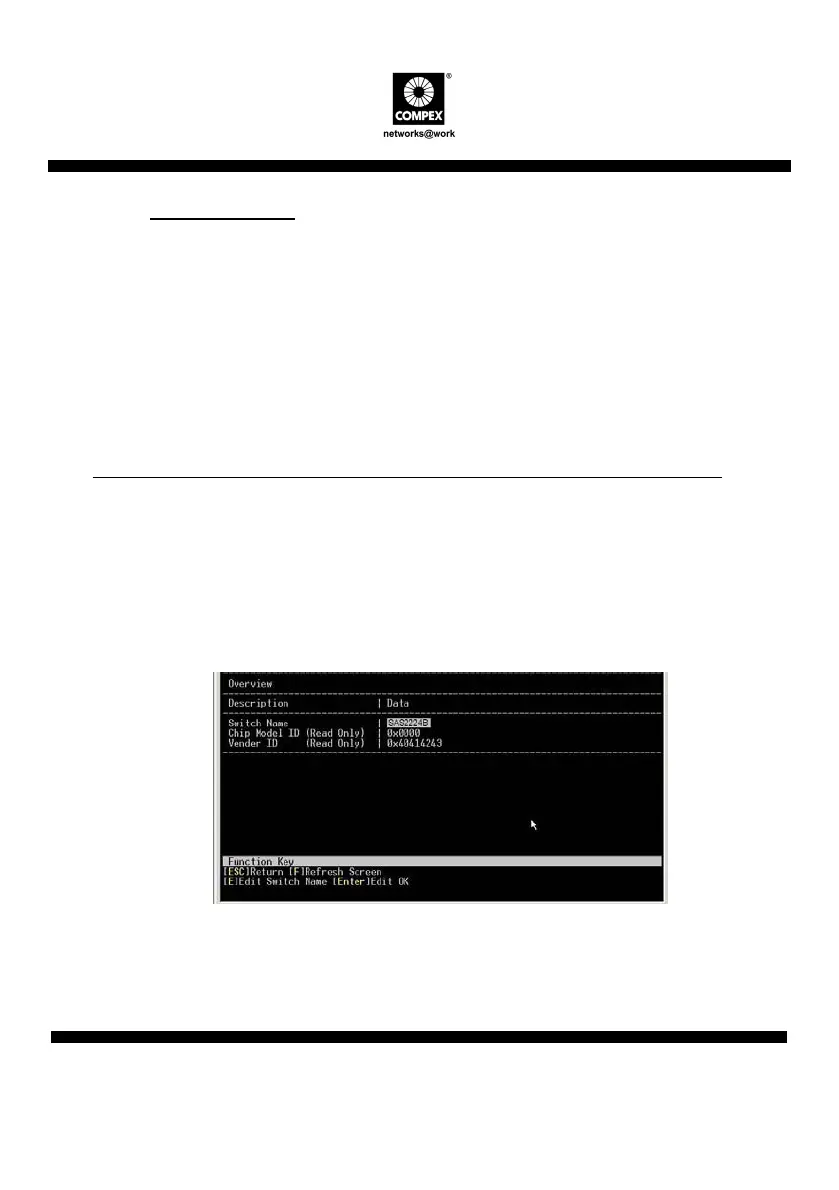

To view or edit your switch’s name, simply select 1 (Status) from the main menu, and
then choose 1 (Overview). The following screenshot will appear:
1. To edit your switch’s name, hit on E key on your keyboard and enter a name for
your Compex SAS2224B.
2. After completion, press the Enter key to update the changes.
