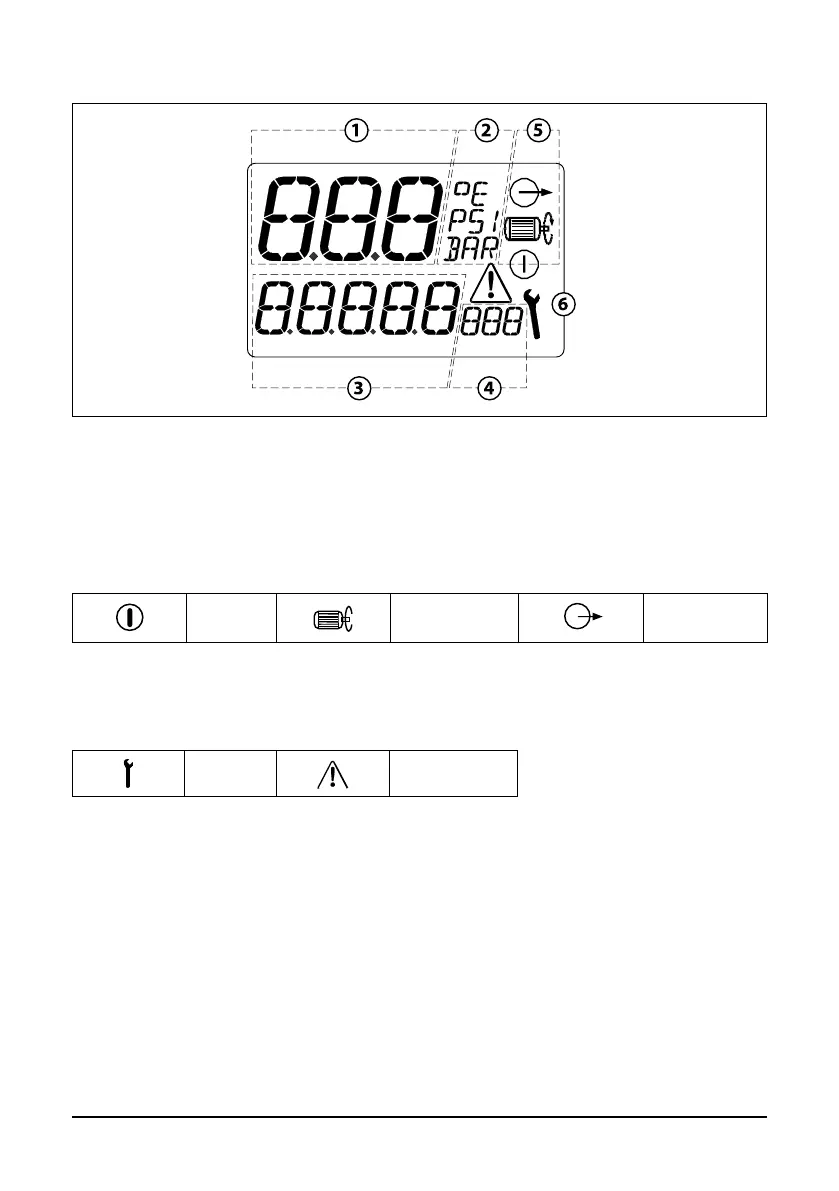

Fig. 4.2 LCD display
1, 2 Pressure at air outlet or Parameter code (in the programming mode)
3, 4 Temperature of the oil-air mixture
5 Symbols on the state of the compressor
Standby Unloading Loading
6 Ancillary symbols.
Service
Alarm
The controller features a long-term memory for storing operational data on running hours,
instrument values and system conditions.
Controller operation description
When the compressor is started, the display indicates the pressure at the air outlet and the
temperature of the oil-air mixture in the air end. The compressor has 3 working modes:
Information displayed on the LCD display.
