Hot gas bypass valve setting:
R134a - 2,2 bar (+0,1/-0)
R404a - 5,4 bar (+0,1/-0)
5.2 Condensate drain valve adjustment
An automatic condensate drain valve is installed on the rear of the dryer RDX04-18 casing
and on the front of the dryer RDX24-180 casing and can be accessed via a port.
The condensate drain valve should be set up so that water can be fully removed from the
dryer’s heat exchanger.
The condensate drain valve has a TEST button (for checking functionality) and 2 knobs for
adjusting condensate discharge.
For forced discharge of condensate, press the TEST button (1) for several seconds, but no
more than 10.
Setting frequency of condensate discharge:
The left regulating knob (2) sets the duration for opening of the valve from 0.5 to 10 seconds.
The right regulating knob (3) sets the frequency for opening the valve from 0.5 to 45 minutes.
5.3 Cleaning condenser
1
2
3

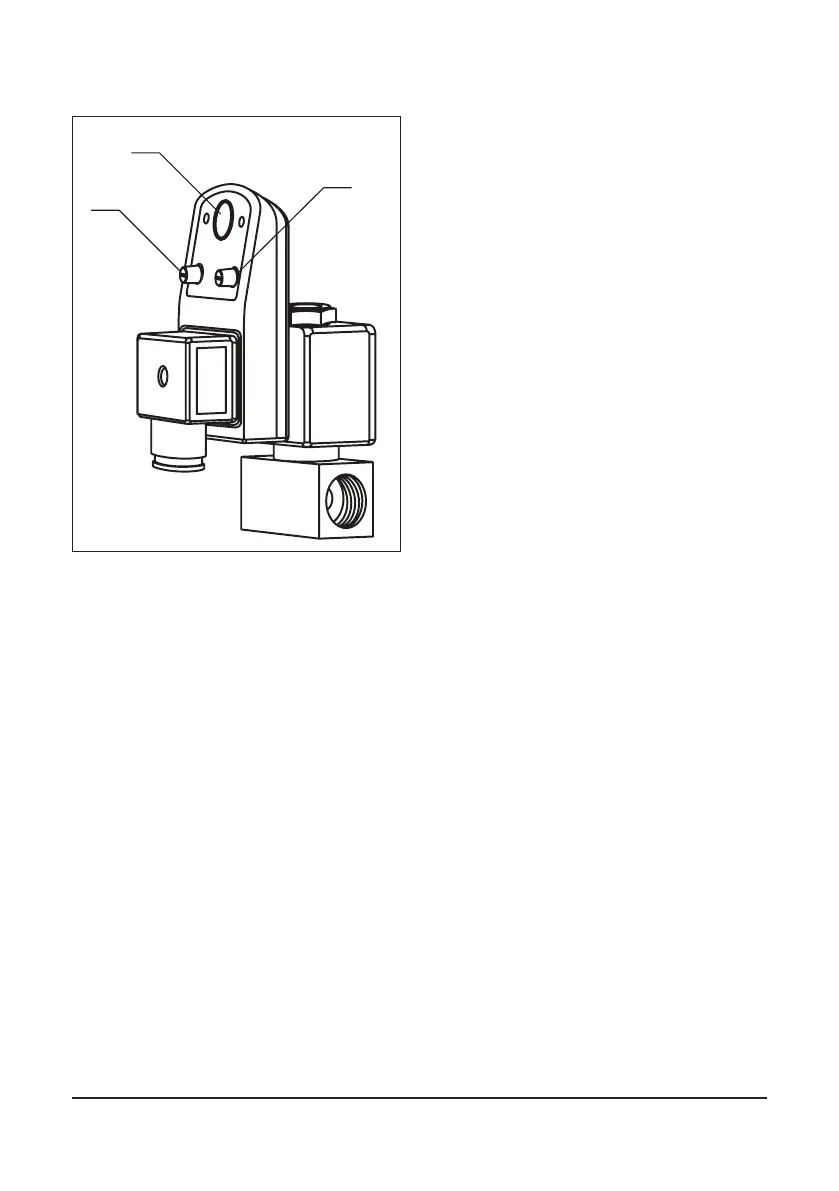

Fig. 5.2 Drain valve
1. TEST button
2. Regulating knob, opening duration
3. Regulating knob, opening frequency
