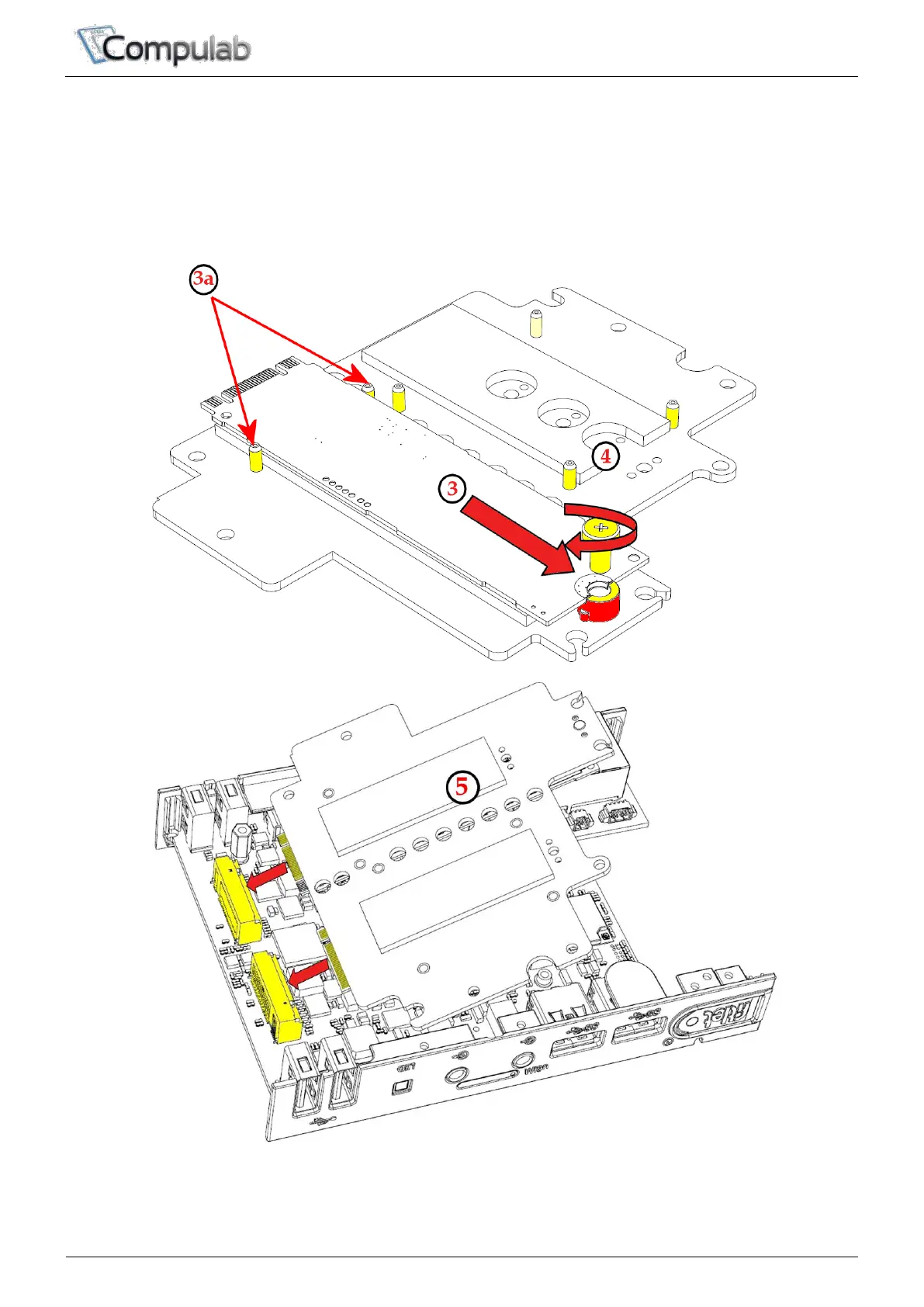

3. Place edge of M.2 SSD against the fastening screw
a. Press the SSD firmly against the thermal pad until its connector edge
is seated between the alignment pins.
Once positioned correctly the connector edge should stick out above
the edge of the M.2 cooling plate.
4. Tighten the fastening screw
5. Turn over the M.2 cooling plate and push the M.2 SSD into its socket
at the underside of the motherboard.
