Re-assembling fitlet3

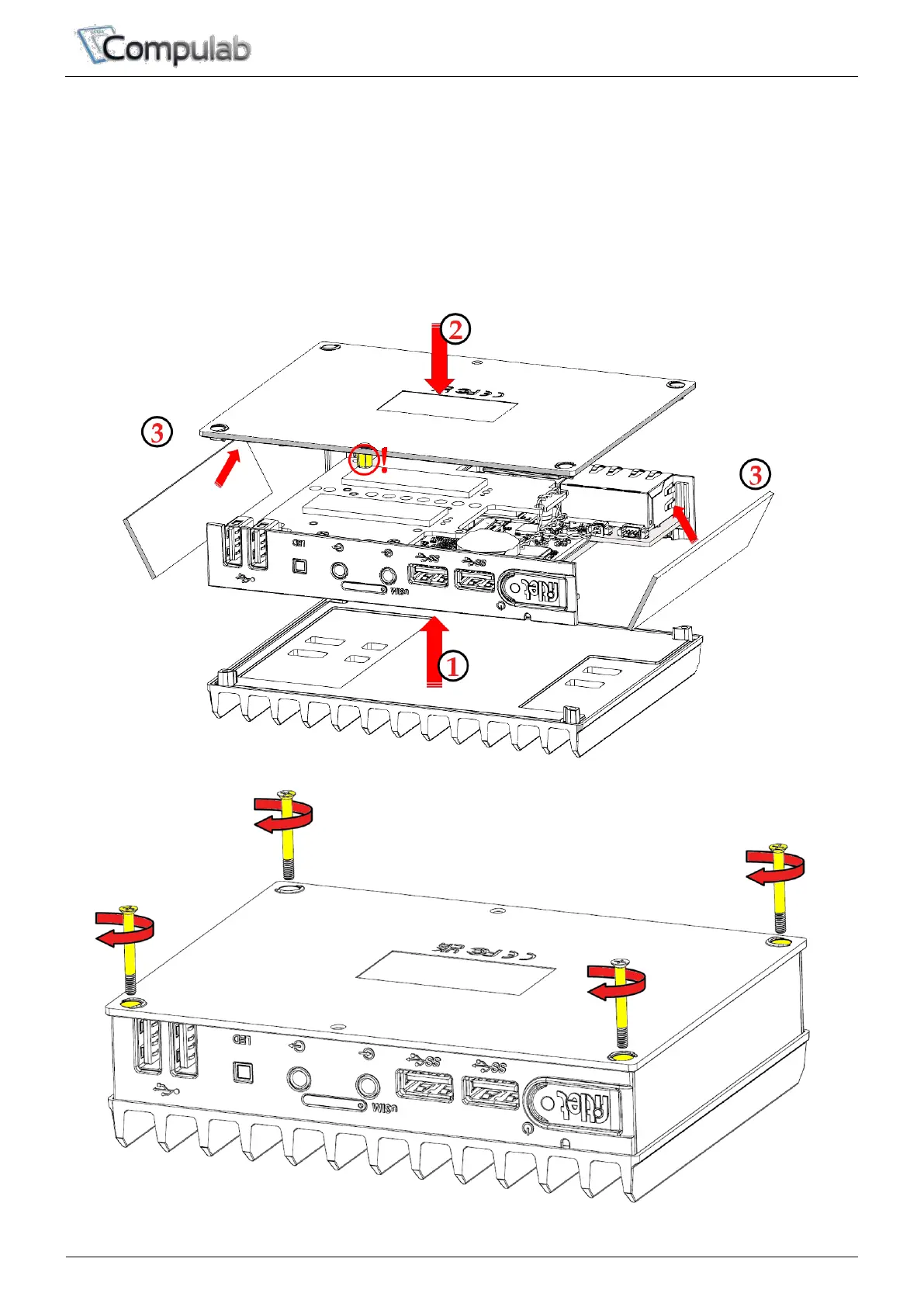

1. Place the fitlet3 onto the top cover.
Note: The top cover is symmetric – direction does not matter.
2. Place the bottom cover onto the fitlet3.
Important note: The tall U-shaped boss (!) has to be near the M.2 sockets. Otherwise,
the bottom cover will not fit!
3. Click both side panels into place
4. Tighten the 4 screws
