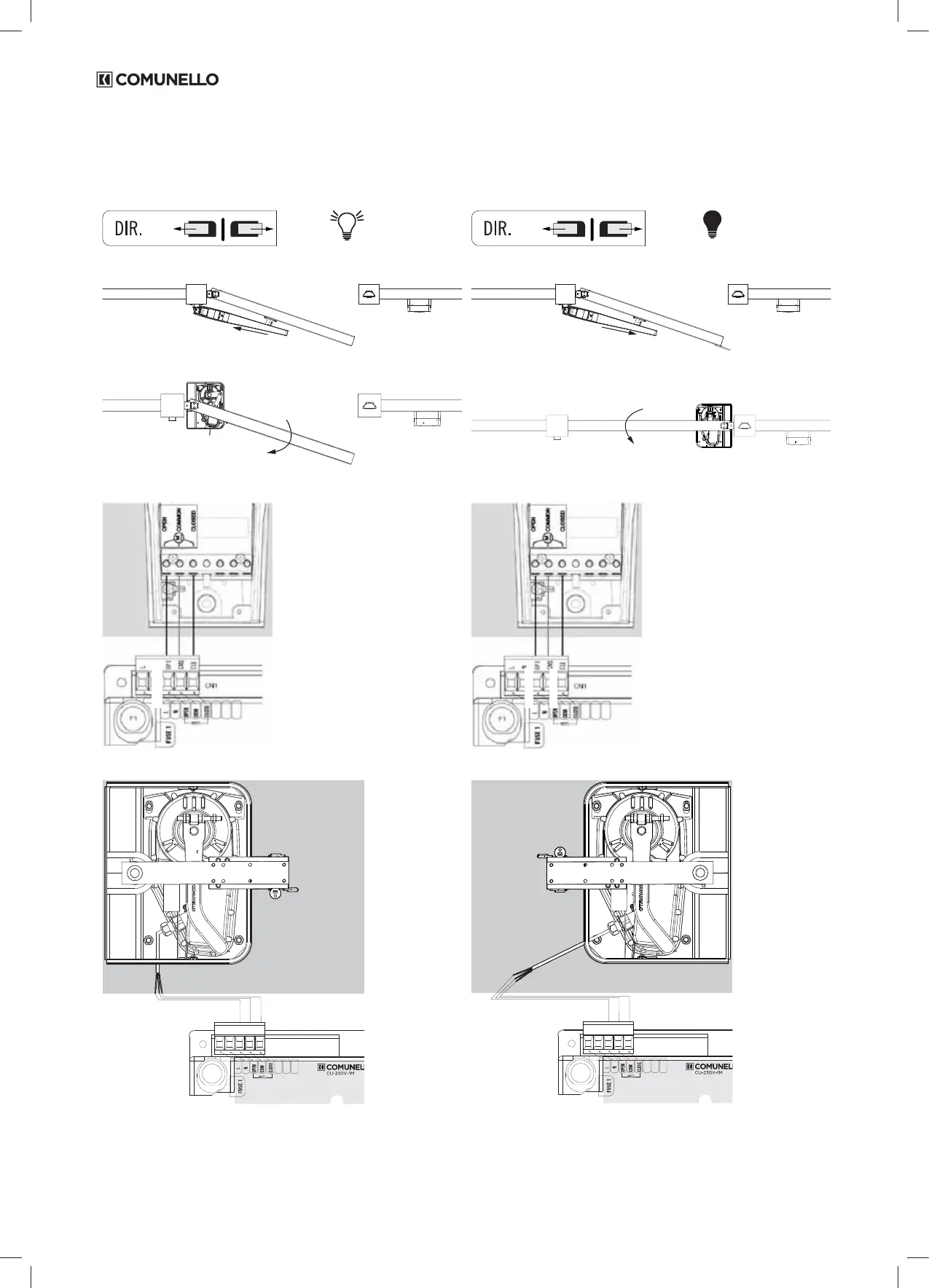

4.3 SWING MOTOR IN A SINGLE LEAF
Motors with vector motion (e.g. ABACUS model) and with radial motion (e.g. EAGLE model)
Main menu adjustment, the LED L1 is used to reverse sense of direction
(and electronic end stops, once wired to the control board).
Main menu adjustment, the LED L1 is used to reverse sense of direction
(and electronic end stops, once wired to the control board).
INWARDS OPENING OUTWARDS OPENING
LED ON
LED OFF
(factory conguration)
ABACUS (vector motion, as for the RAM model). ABACUS (vector motion, as for the RAM model).
EAGLE (radial motion, as for CONDOR models). EAGLE (radial motion, as for CONDOR models).
ABACUS - CONNECTION ABACUS - CONNECTION
EAGLE - CONNECTION EAGLE - CONNECTION
CN1
F1
L N
OP1 CM1 CL1
BROWN BLACK BLUE
CN1
F1
L N
OP1 CM1 CL1
BLACK BLUE BROWN
BLACK OP1
BLUE CM1
BROWN CL1
BLACK OP1
BLUE CM1
BROWN CL1
* capacitor wired between the two phases
BROWN BLACK
BLUE BLUE BLACK
BROWN
