Concept2 C Indoor Rower - Page 2

Seat
Carriage
Indoor Rower Parts
Return
Mechanism
Molded Foot Cap
PN 119
Footstraps (pair)
PN 1718
Flexfoot (ea.)
PN1004
Flexfoot
Toe Piece & Screws (ea.)
PN 1720
Monitor (PM2)
PN 1757
Monitor Pickup
PN 1748
Caster
Wheel (ea.)
PN 1308

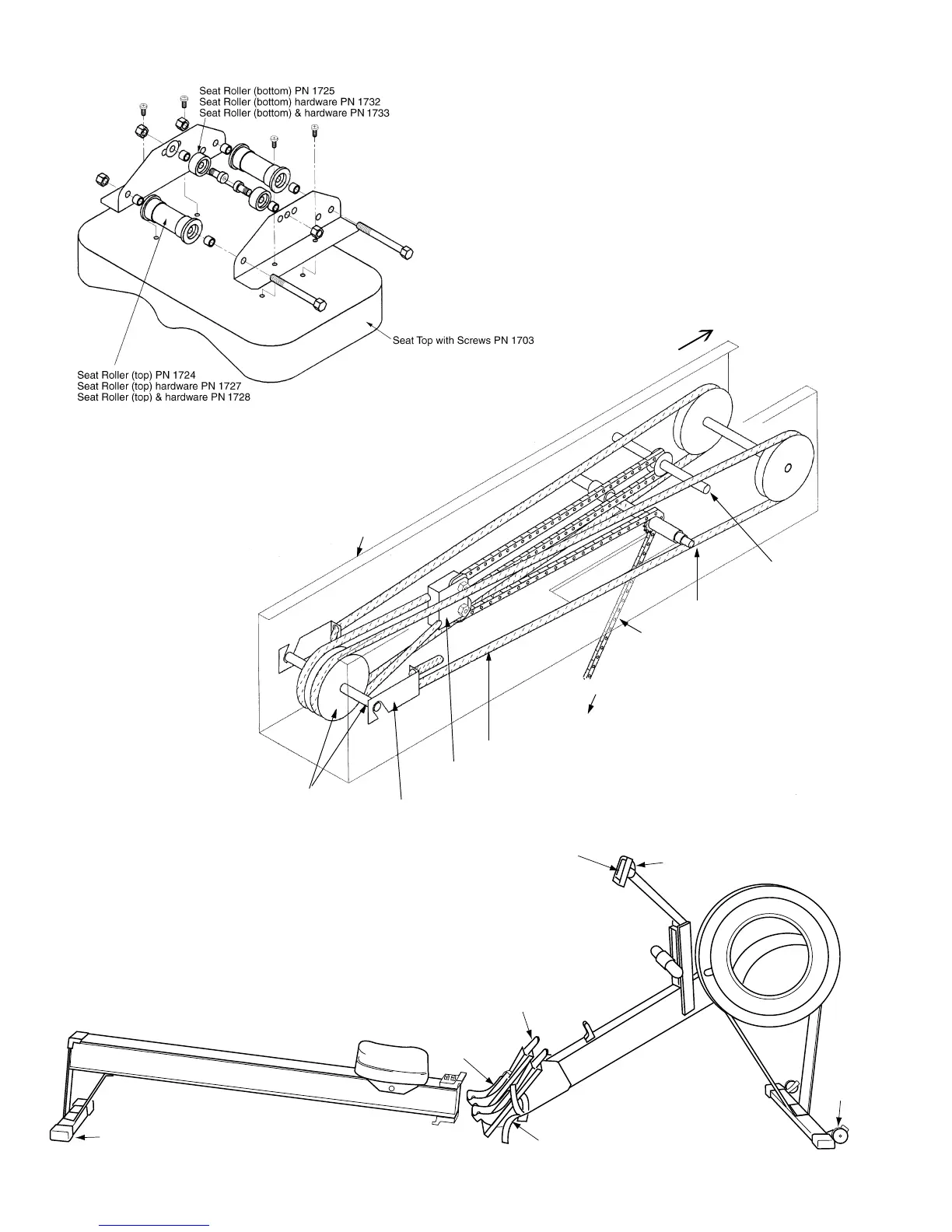

FLYWHEEL SECTIONMONORAIL SECTION
Schematic
Diagrams
with Part
Numbers
FRONT OF MACHINE
Shock Cord Pulleys (4) PN 1011
and Axles (2) PN 1130
S.C.A.M.s (2) PN 1104
Travelling Pulley Assembly PN 1756
Shock Cord (12.5') PN 1731
Chain Assembly PN 1716
Flywheel Axle PN 1113
and Sprocket PN 1112
Idler Pulley PN 1024
Idler Axle PN 1130
TO HANDLE
FLYWHEEL SIDE
OF MACHINE
