Condor XC-002 User Manual

Mechanical Key Cutting Machine CONDOR XC-002

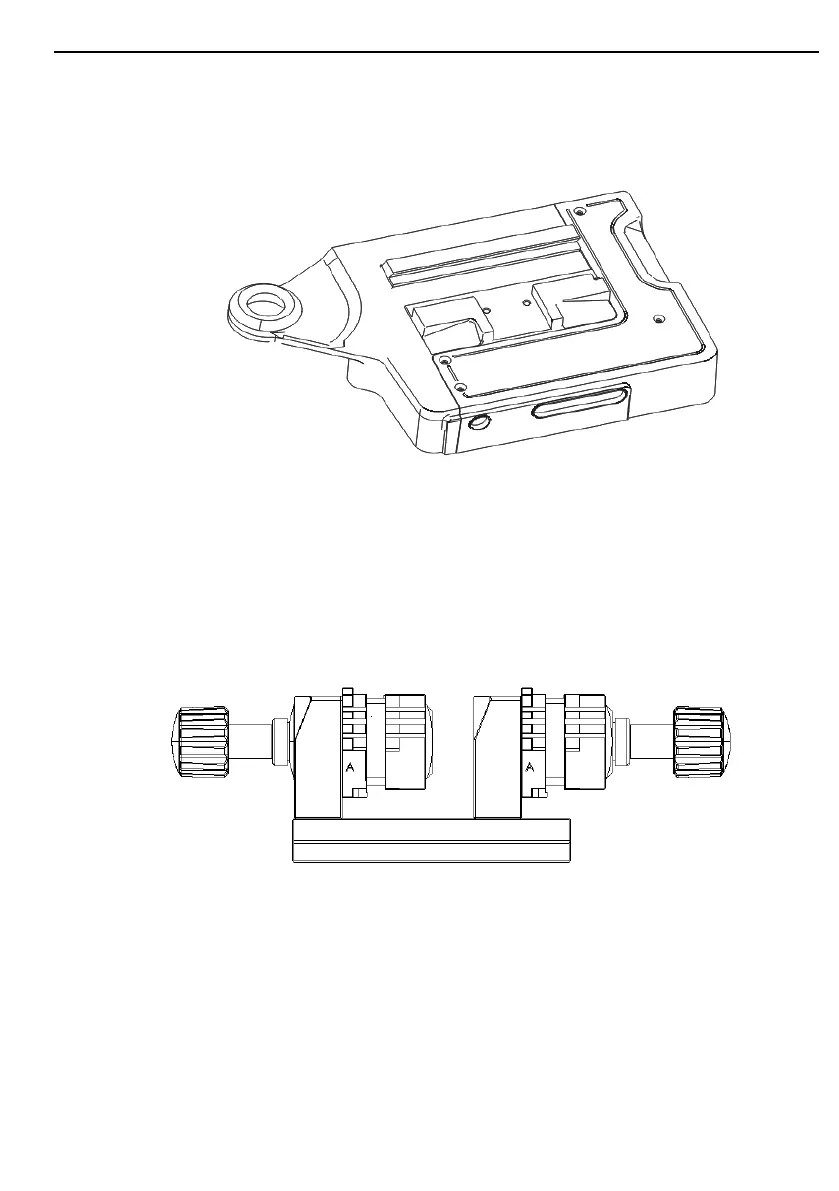

4.3.6 CUTTING BENCH
The sliding base is for the horizontal movement of clamp.
(The maximum slide distance is 38mm laterally and 50mm longitudinally.)
4.3.7 CLAMP
This is the key carrier (the left one is sub-clamp for original key and the right
one is main clamp for key blank). Four sides A, B, C and D are rotary, and
each of them has the place for key alignment. Please select the
corresponding side in terms of key type and bitting.
NOTE: When cutting, the side of both two clamps must be the same.
12
