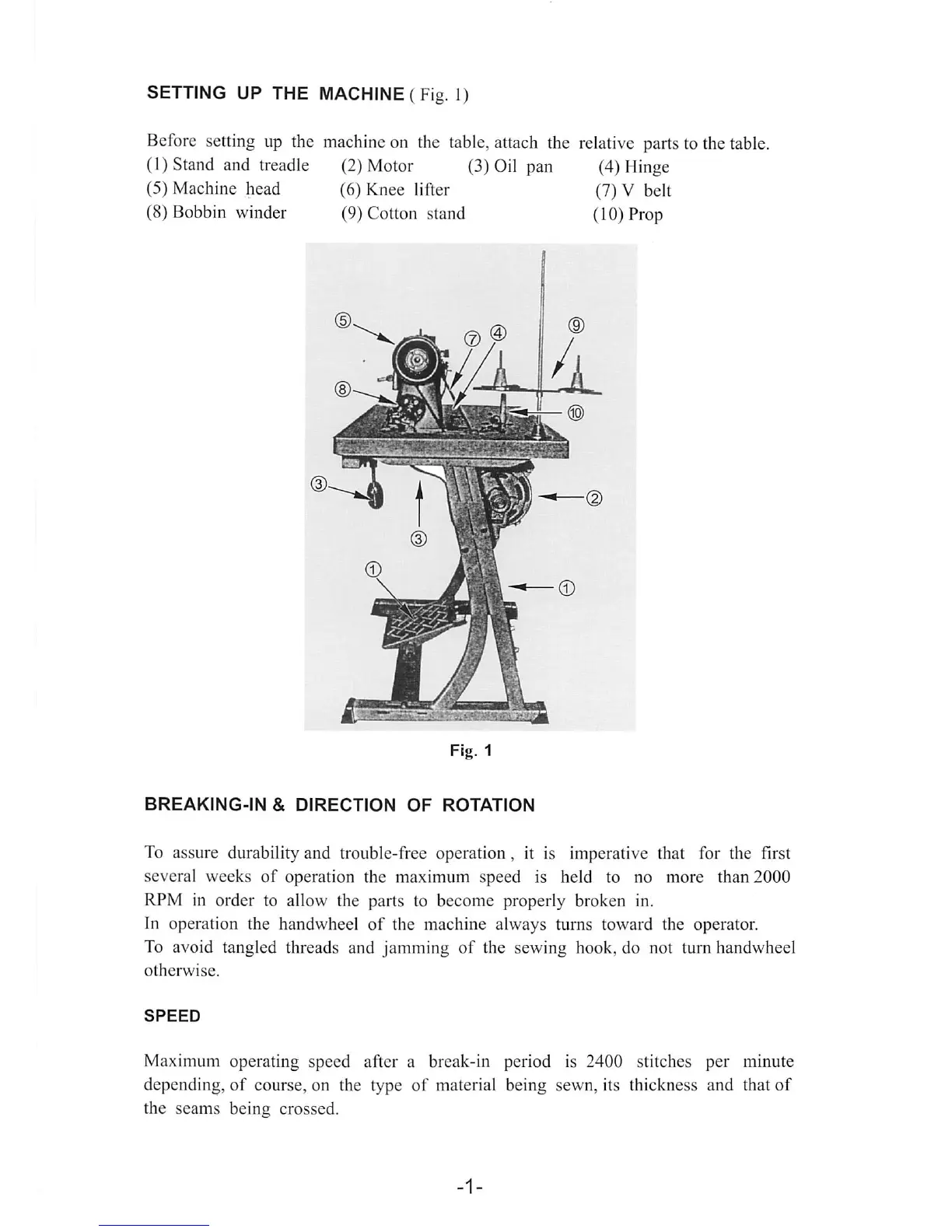

SETTING UP THE
MACHINE
(
Fig.
1)
Before
setting up the
machine
on
the
table,
attach
the relative partsto the
table.
(I) Stand and treadle (2) Motor (3) Oil pan (4) Hinge
(5)
Machine
head
(6)
Knee
lifter (7) V belt
(8)
Bobbin
winder
(9)
Cotton
stand
(10)
Prop
@ ®
Fig. 1
BREAKING-IN
&
DIRECTION
OF
ROTATION
To assure durability and trouble-free operation, it is imperative that for the first
several weeks
of
operation the maximum speed is held to no more than 2000
RPM in order to allow the parts to become properly broken in.
In operation the handwheel
of
the machine always turns toward the operator.
To avoid tangled threads and jamming
of
the sewing hook, do not turn handwheel
otherwise.
SPEED
Maximum operating speed after a break-in period is 2400 stitches per minute
depending,
of
course, on the type
of
material being sewn, its thickness and that
of
the seams being crossed.
