THE POSITION OF THE NEEDLE ~ND THE NEEDLE HOLE OF THE
FEEDER
Turning the machine pulley to lower slowly the needle bar, check whether the
needle descends to the center of the needle hole of the feeder or not. (Please
check again the needle is perfect one.)
If the needle does not enter into the center of the hole;
1. Remove the cover (G,Fig. 3)"and loosen the screw «D, Fig. 16)slightly.
2. Holding the bottom of the needle bar rock frame (H, Fig. 4), move it as may
be required to get the correct position to the feeder.
3. Tighten the screw and close the cover.
~----
\
I
!
i
(
I
!
(
.
~
,
1
t
,
I
I

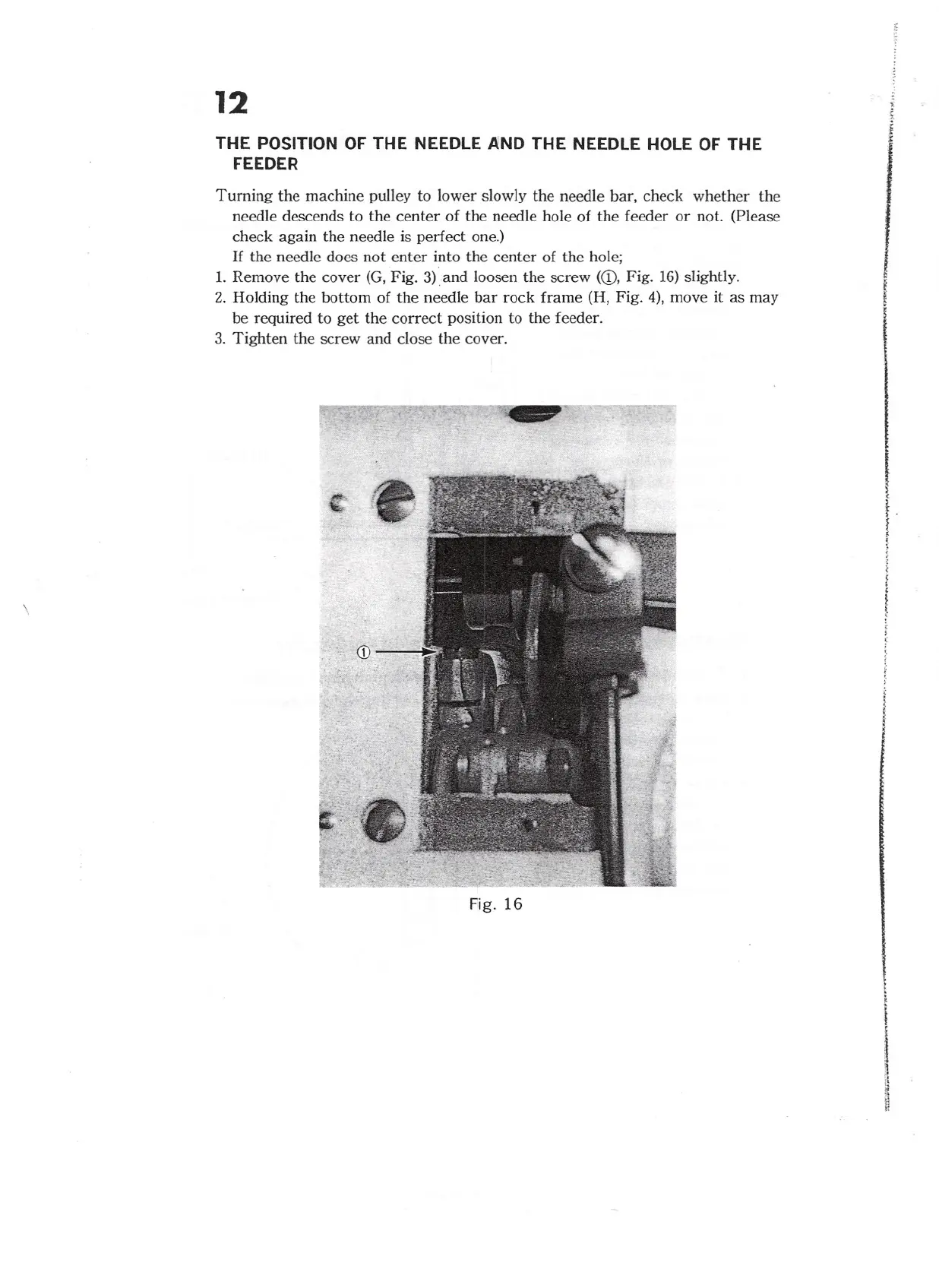

Fig. 16
