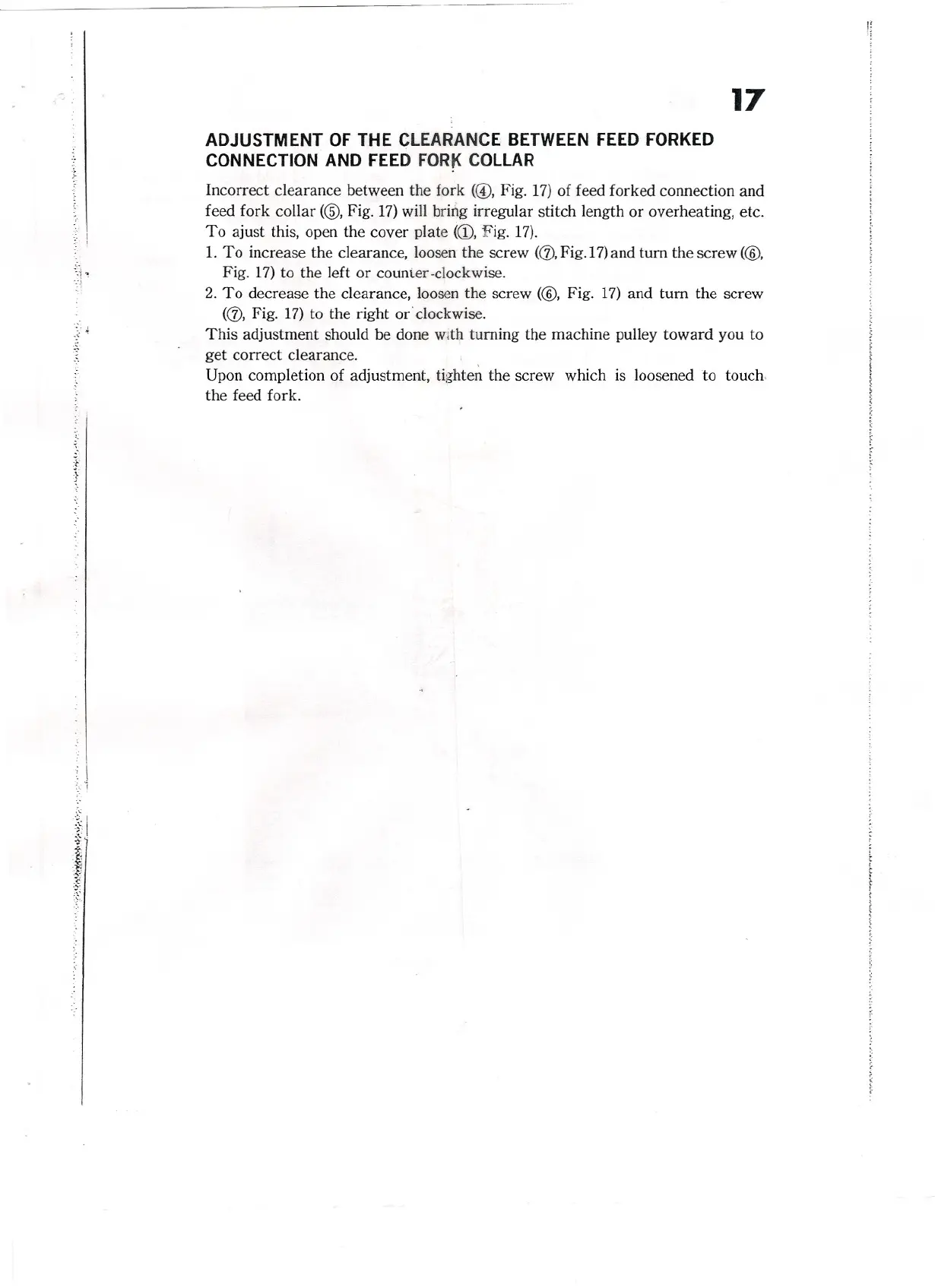

ADJUSTMENT OF THE CLEARANCE BETWEEN FEED FORKED
CONNECTION AND FEED FORt< COLLAR
:~I
Incorrect clearance between the fork ((1),Fig. 17)of feed forked connection and
feed fork collar (@,Fig. 17)will bring irregular stitch length or overheating, etc.
To ajust this, open the cover plate «D, Fig. 17).
1. To increase the clearance, loosen the screw «(1),Fig. 17)and turn the screw (@,
Fig. 17)to the left or counter -clockwise.
2. To decrease the clearance, loosen the screw (@, Fig. 17) and turn the screw
«(1),Fig. 17)to the right or' clockwise.
This adjustment should be done wIth turning the machine pulley toward you to
get correct clearance. .
Upon completion of adjustment, tighten the screw which is loosened to touch.
the feed fork.
