Consew 7360RB - Thread Take-Up Lever Oil Supply

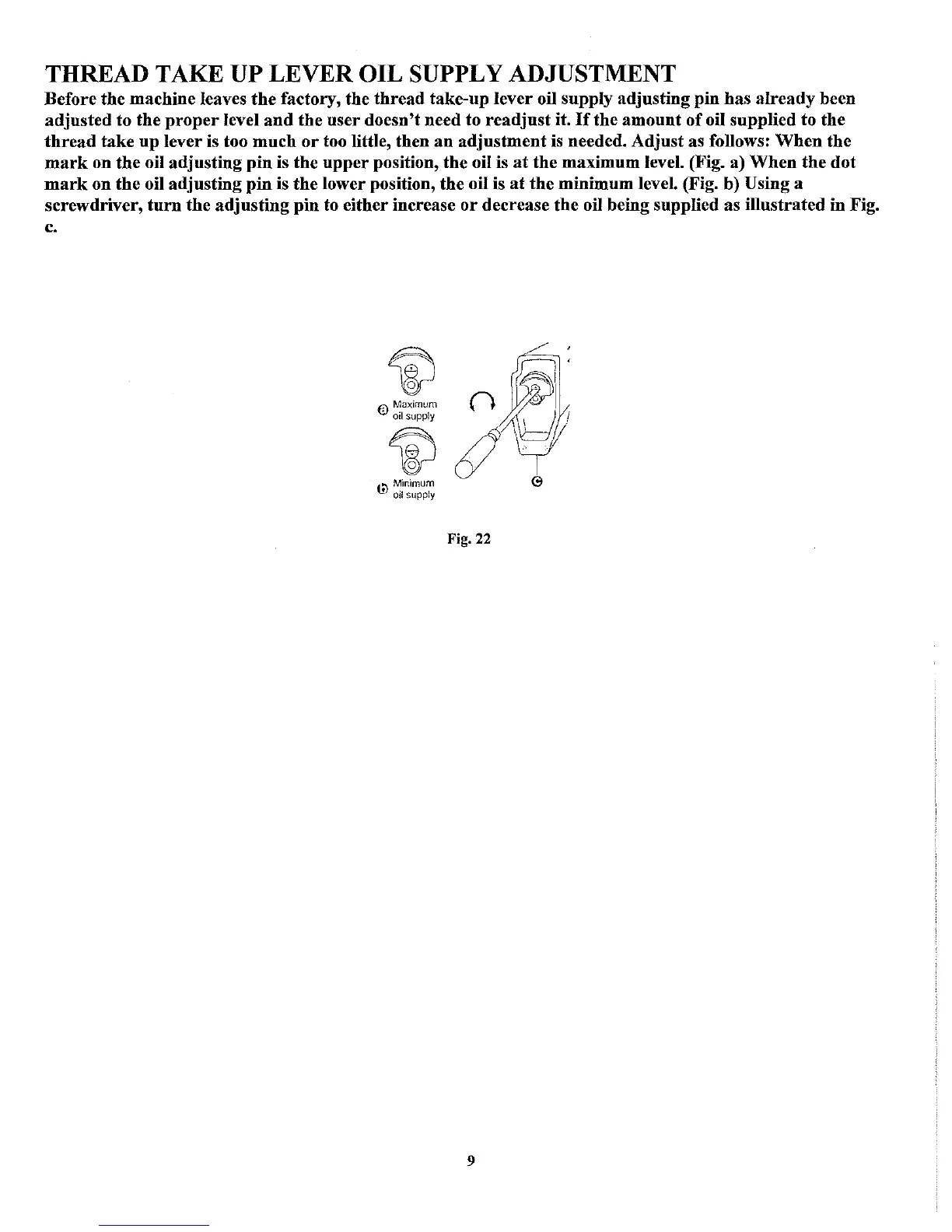

THREAD TAKE UP LEVER OIL SUPPLY ADJUSTMENT
Before the machine leaves the factory, the thread take-up lever oil supply adjusting pin has already been
adjusted to the
proper level and the user doesn't need to readjust it.lfthe amount of oil supplied to the
thread take up lever is too much or too little, then an adjustment is needed. Adjust as follows: When the
mark on the oil adjusting pin is the upper position, the oil is at the maximum level. (Fig. a) When the dot
mark on the oil adjusting pin is the lower position, the oil is at the minimum level. (Fig. b) Using a
screwdriver,
turn the adjusting pin to either increase or decrease the oil being supplied as illustrated in Fig.
c.
Fig. 22
9
