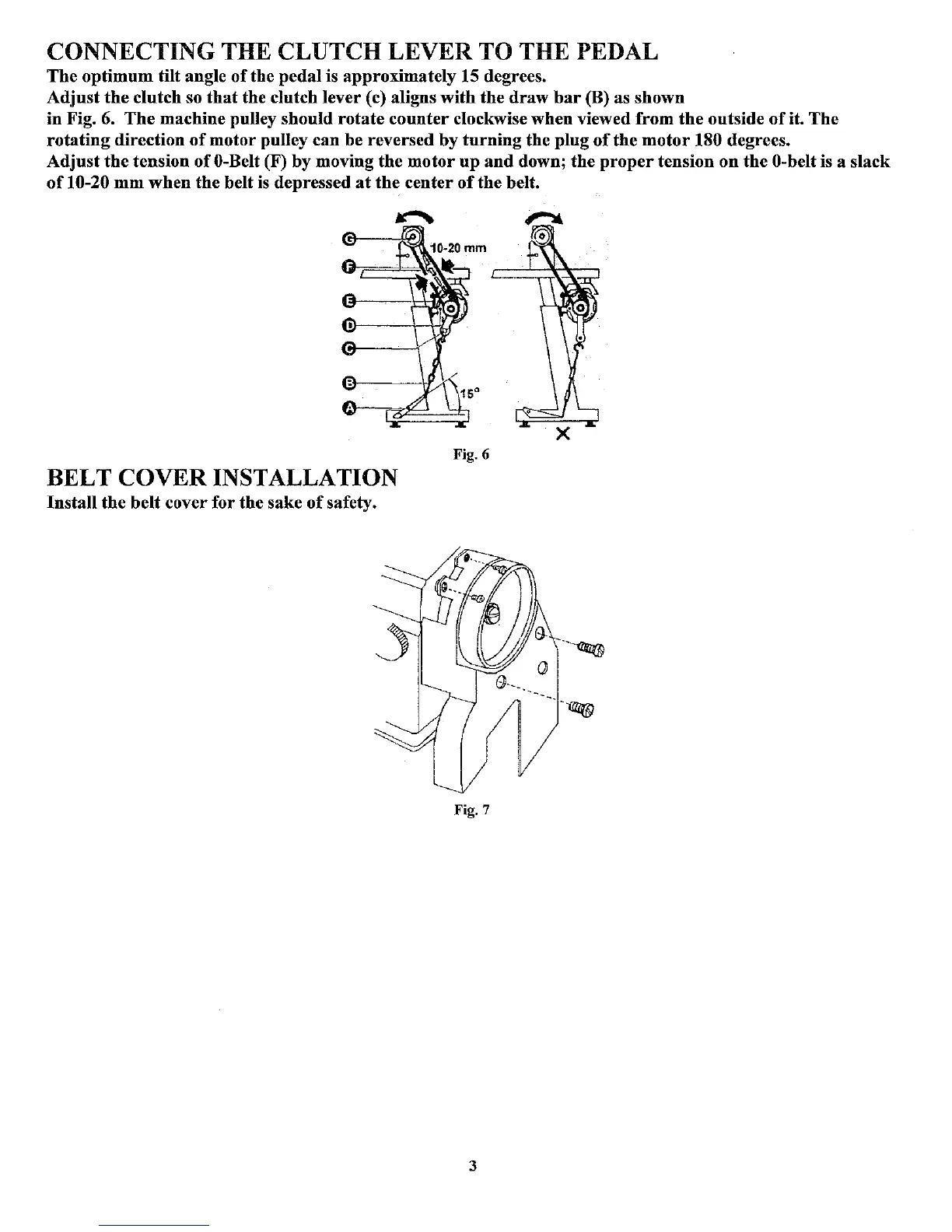

CONNECTING THE
CLUTCH
LEVER
TO
THE
PEDAL
The
optimum
tilt angle
ofthe
pedal
is
approximately
15 degrees.
Adjust
the
clutch
so
that
the clutch lever (c) aligns
with
the
draw
bar
(B) as
shown
in
Fig. 6.
The
machine
pulley
should
rotate
counter
clockwise
when
viewed
from
the
outside
of
it.
The
rotating
direction
of
motor
pulley
can
be
reversed
by
turning
the plug
of
the
motor
180 degrees.
Adjust
the
tension
of
0-Belt (F)
by
moving
the
motor
up
and
down;
the
proper
tension
on
the
0-belt is a slack
of
10-20
mm
when
the
belt
is
depressed
at
the
center
ofthe
belt.
Fig. 6
BELT
COVER
INSTALLATION
Install
the
belt
cover
for
the
sake
of
safety.
Fig. 7
3
From the library of: Superior Sewing Machine & Supply LLC
