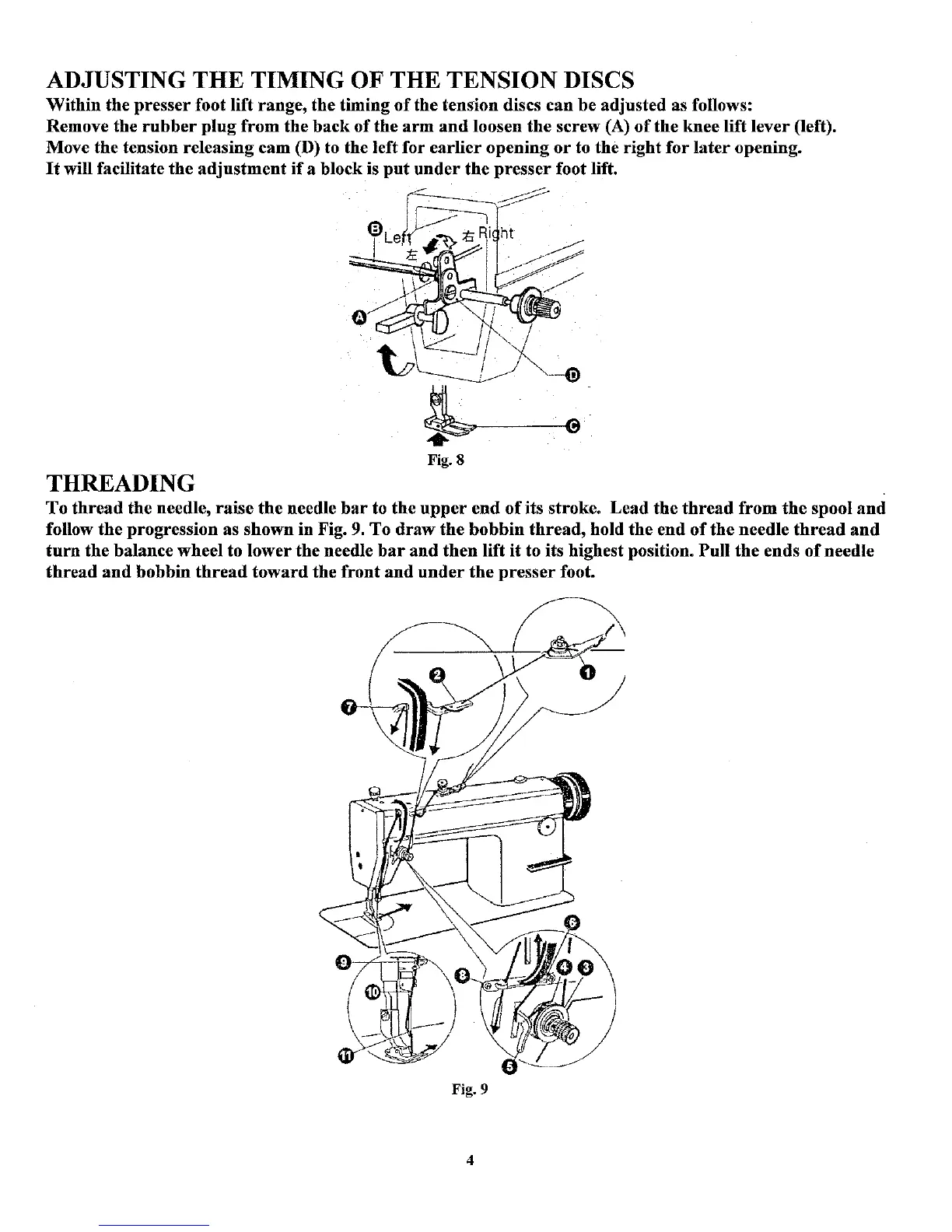

ADJUSTING THE TIMING OF THE TENSION DISCS
Within the presser foot lift range, the timing of the tens-ion discs can be adjusted as follows:
Remove the
rubber plug from the back of the arm and loosen the screw (A) of the knee lift lever (left).
Move the tension releasing cam (D) to the left for earlier opening or to the right for later opening.
It will facilitate the adjustment if a block is put under the presser foot lift.
~
+
Fig. 8
THREADING
To thread the needle, raise the needle bar to the upper end of its stroke. Lead the thread from the spool and
follow the progression as shown in Fig. 9. To draw the bobbin thread, hold the end of the needle thread and
turn the balance wheel to lower the needle bar and then lift it to its highest position. Pull the ends of needle
thread and bobbin thread toward the front and under the presser foot.
Fig. 9
4
