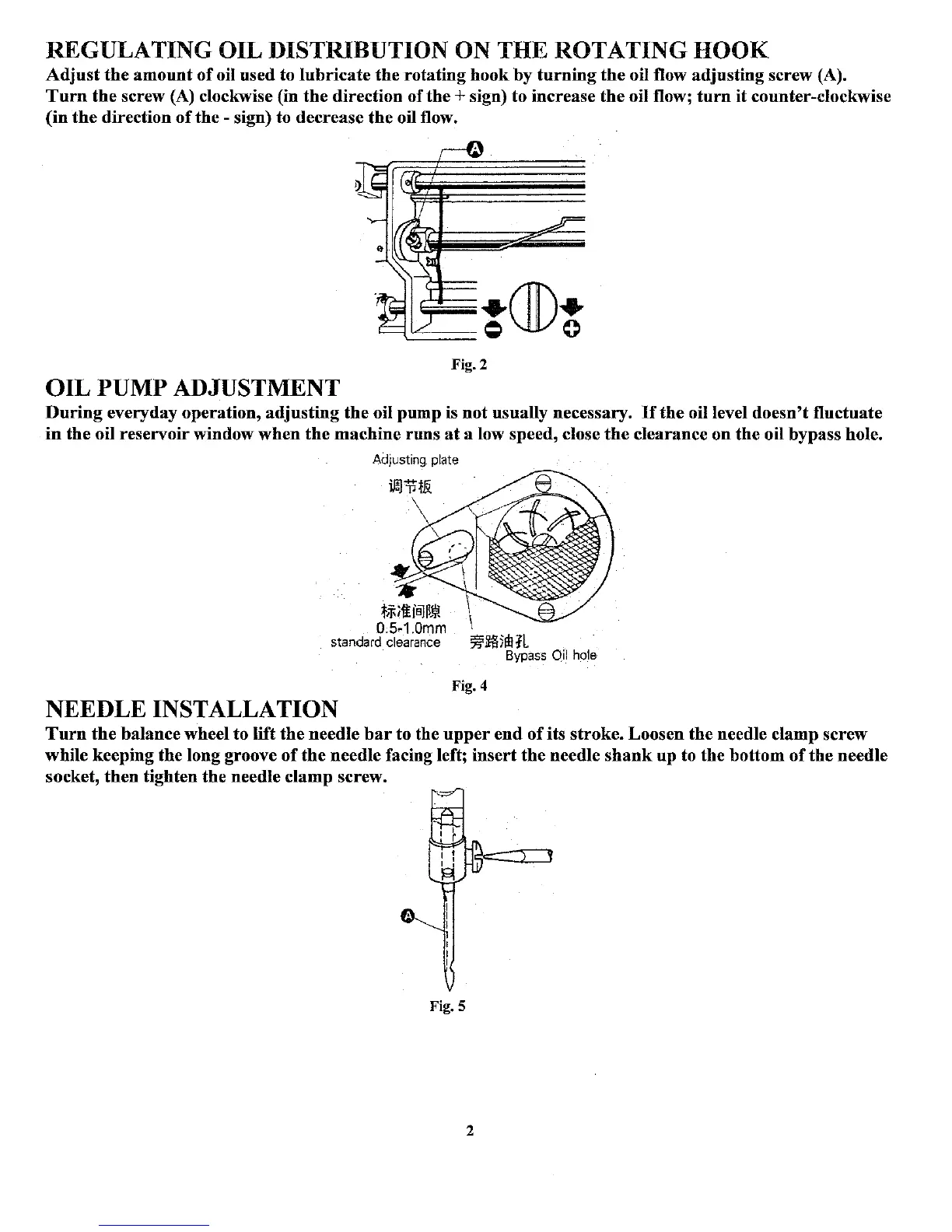

REGULATING OIL DISTRIBUTION ON THE ROTATING HOOK
Adjust the amount of oil used to lubricate the rotating hook by turning the oil flow adjusting screw (A).
Turn the screw (A) clockwise (in the direction of the+ sign) to increase the oil flow; turn it counter-clockwise
(in the direction ofthe- sign) to decrease the oil flow.
Fig. 2
OIL PUMP ADJUSTMENT
During everyday operation, adjusting the oil pump is not usually necessary. If the oil level doesn't fluctuate
in the oil reservoir window when the machine runs at a low speed, close the clearance on the oil bypass hole.
Adjusting plate
j'if, it j8] ~Jli
0.5-1.0mm
standard clearance 5'5'~51bll
Bypass Qil hole
Fig. 4
NEEDLE INSTALLATION
Turn the balance wheel to lift the needle bar to the upper end of its stroke. Loosen the needle clamp screw
while keeping the long groove of the needle facing left; insert the needle shank up to the bottom of the needle
socket,
then tighten the needle clamp screw.
Fig. 5
