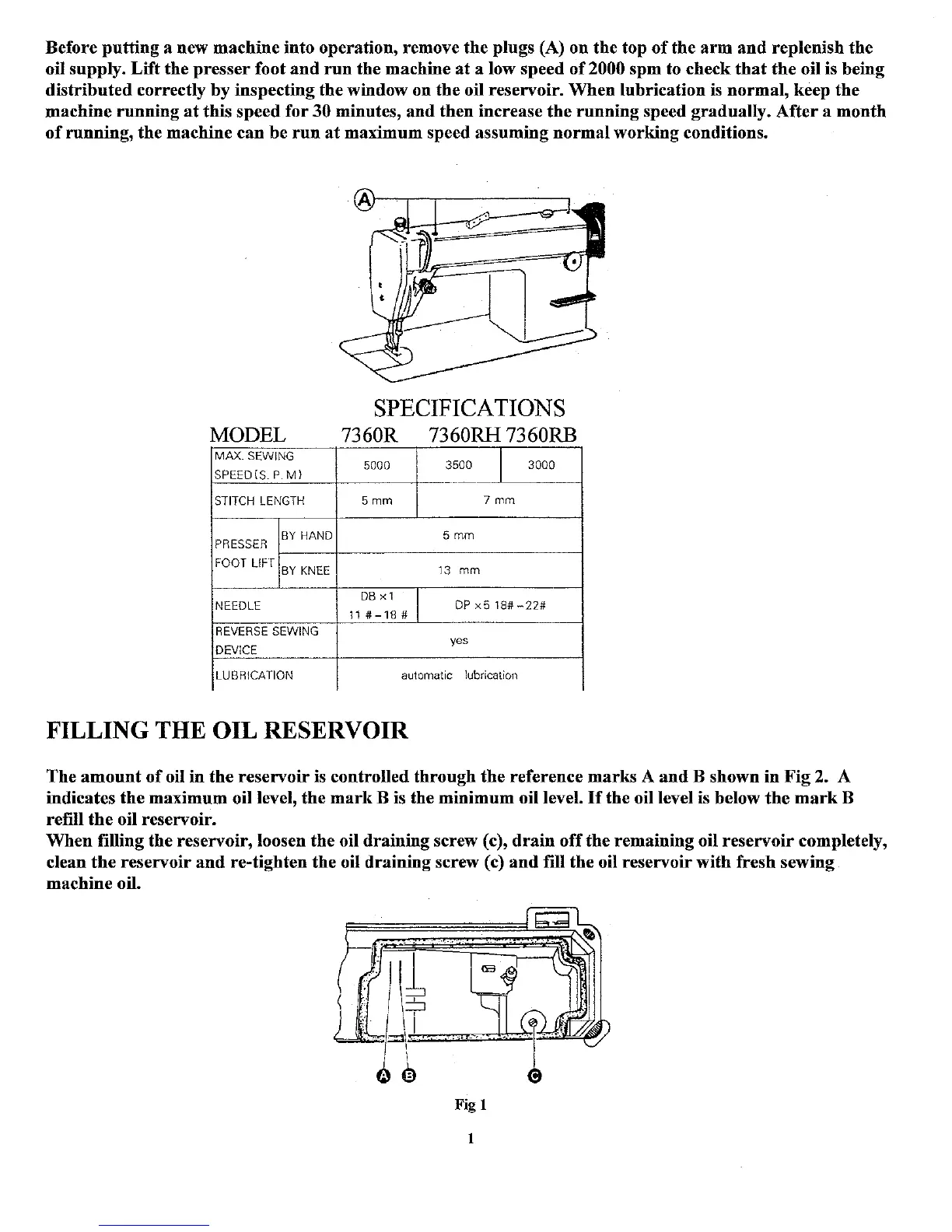

Before
putting
a new machine into operation, remove the plugs (A) on the top
of
the
arm
and
replenish the
oil supply. Lift the
presser
foot
and
run
the machine
at
a low speed
of
2000 spm to check
that
the
oil is being
distributed correctly by inspecting the window on the oil reservoir.
When
lubrication
is
normal, keep
the
machine
running
at
this speed for 30 minutes,
and
then increase
the
running
speed gradually.
After
a month
of
running, the machine can be
run
at
maximum speed assuming
normal
working conditions.
SPECIFICATIONS
MODEL
7360R 7360RH 7360RB
MAX. SEWING
SPEED IS.
P.
Ml
5000
3500
I
3000
-
-·-
·--
STITCH LENGTH
5mm
7
mm
PRESSER
BY
HAND
5
mm
FOOT LIFT
BY
KNEE
13
mm
DB
x1
DP
x5
18#
-22#
NEEDLE
11#-18#
REVERSE SEWING
DEVICE
yes
LUBRICATION automatic
lubrication
FILLING
THE
OIL
RESERVOIR
The
amount
of
oil in
the
reservoir
is
controlled through
the
reference
marks
A
and
B shown
in
Fig
2. A
indicates the maximum oil level, the
mark
B
is
the minimum oil level.
If
the oil level
is
below
the
mark
B
refill
the
oil reservoir.
When
filling the reservoir, loosen the oil draining screw (c),
drain
off the remaining oil
reservoir
completely,
clean
the
reservoir
and
re-tighten the oil draining screw (c)
and
fill the oil reservoir
with
fresh sewing
machine oil.
Fig 1
1
