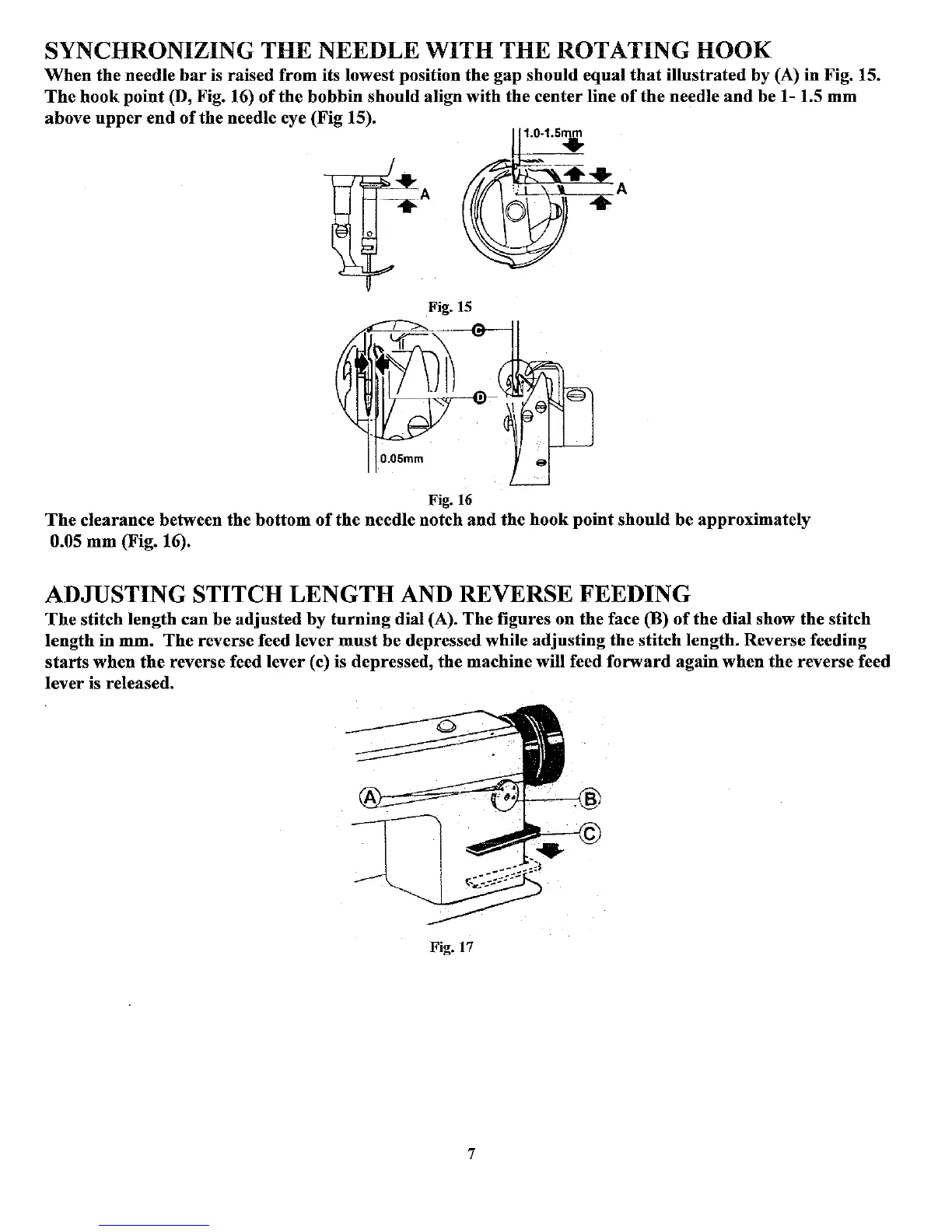

SYNCHRONIZING THE NEEDLE WITH THE ROTATING HOOK
When the needle bar is raised from its lowest position the gap should equal that illustrated by (A) in Fig. 15.
The hook point (D, Fig. 16) of the bobbin should align with the center line of the needle and be 1- 1.5 mm
above upper end ofthe needle eye (Fig 15).
Fig. 15
Fig.
16
The clearance between the bottom of the needle notch and the hook point should be approximately
0.05 mm (Fig. 16).
ADJUSTING STITCH LENGTH AND REVERSE FEEDING
The stitch length can be adjusted by turning dial (A). The figures on the face (B) of the dial show the stitch
length in mm.
The reverse feed lever must be depressed while adjusting the stitch length. Reverse feeding
starts when the reverse feed lever (c) is depressed, the machine will feed forward again when the reverse feed
lever is released.
