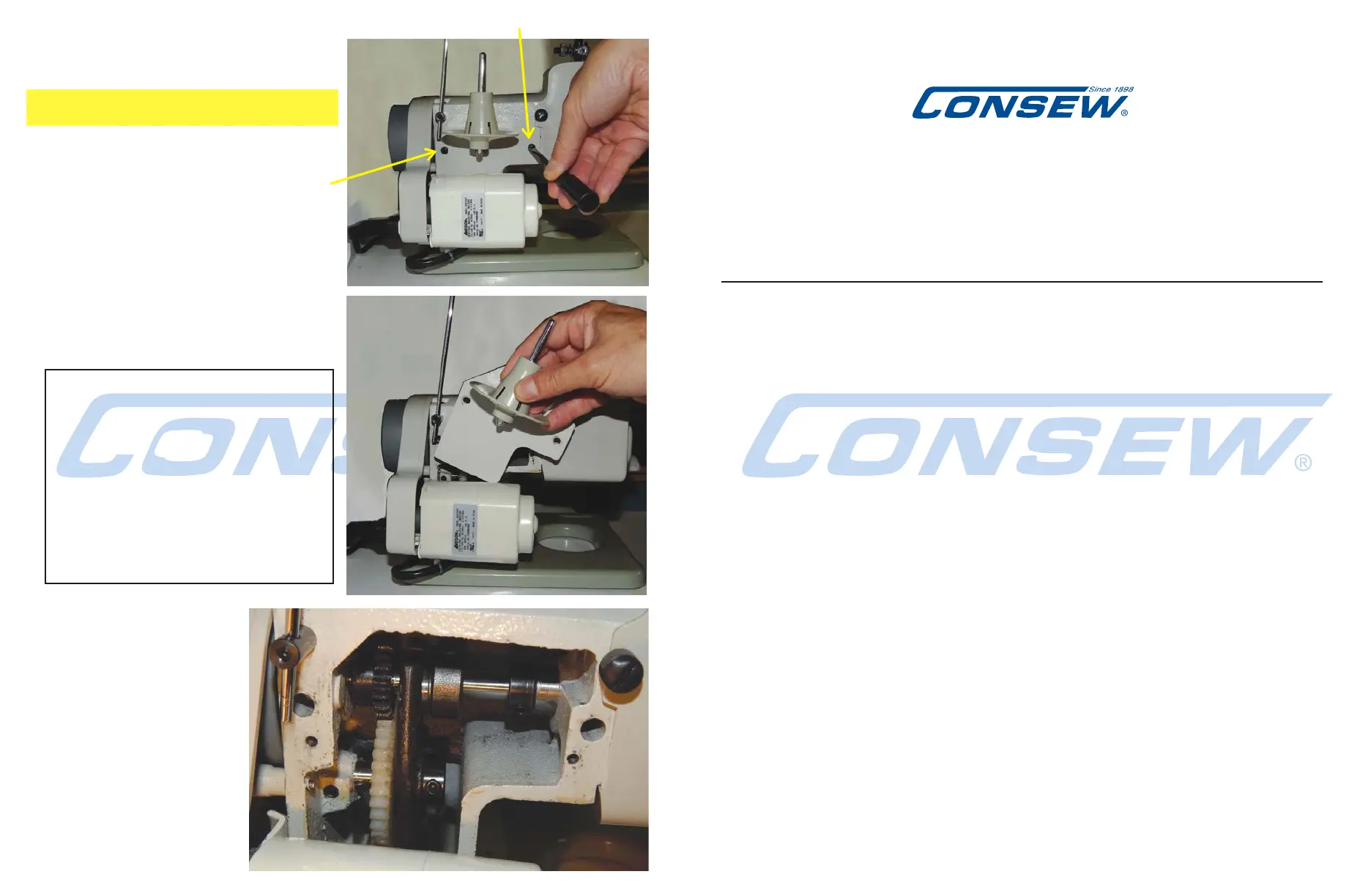

13. Removal of Rear Cover
Unscrew the two
screws shown
(Fig.19)
Back Cover then
lifts off easily.
(The thread holder
base is attached to it)
(Fig.20)
Fig.21: Inside showing gears
and drive parts of machine.
A proper amount of grease
should be present to minimize
heat and friction and keep the
machine running smoothly.
If the machine is in constant
daily use, one may want to
have it professionally serviced
twice a year.
If the machine is only used
once or twice per week, or
less It will need servicing care
much less often.
Fig.19
Fig.20
Fig.21
Safety Warning:
Pull out the AC power plug before working inside machine!
WARNING: The machine will have
fine grade sewing machine grease inside
on the moving parts and gears. This is the
way it is supposed to be. If machine seems
excessively dirty or dry of grease it is
recommended to have an authorized sewing
machine service professional clean and grease
your sewing machine.
The proper amount of fine sewing machine
grease and oil must be used.
Lubrication
