Consew Sewing Machine - Setting Up the Machine; Oiling and Its Adjustment

2

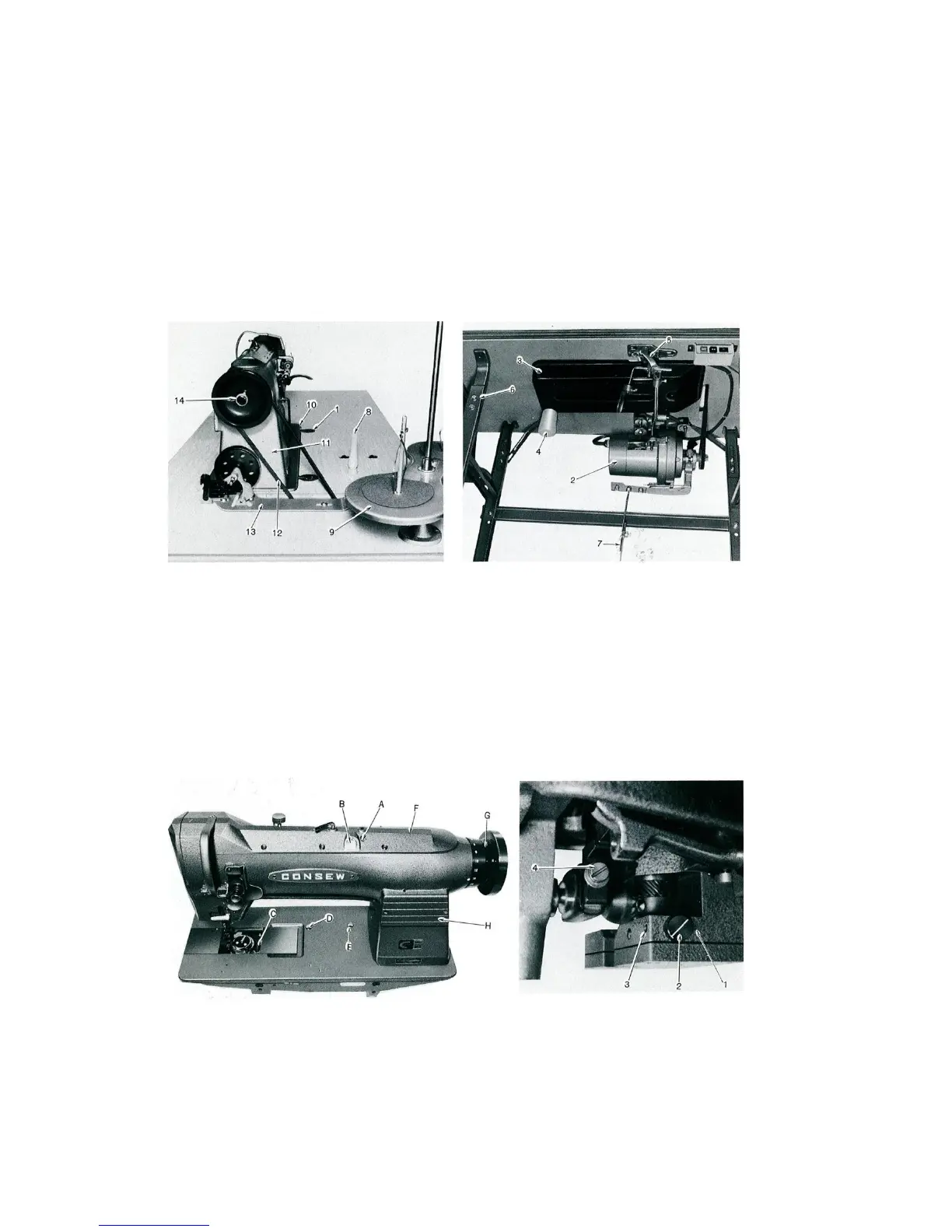

SETTING UP THE MACHINE
Before setting up the machine on the table, attach the relative parts to the table.
1.
Hinge
2.
Motor
3.
Oil pan
4.
Oil bottle
5.
Knee lifter
6.
Stand
7.
Treadle
8.
Machine rest pin
9.
Cotton stand
10.
Cushion rubber
11.
Head of machine
12.
V belt
13.
Bobbin winder
OILING AND IT'S ADJUSTMENT
Do not operate the machine, even if for testing, unless it has been properly oiled.
(1) To fill the oil reservoir on top of the machine, pour oil through the oil filler hole (A),
until oil level reaches to the upper reference line.
Oiling is automatically made by the vibration of the machine while sewing operation
through the oiling wicks in the machine, and Oil flow stops automatically when the
operation of the machine ends.
