Consew Sewing Machine - Adjusting the Height of the Feed Dog

9
After inserting the belt correctly, replace the
.,
rear bushing, screws, the arm top cover,
etc. to their original Places. Finally, adjust the timing marks mentioned in the item No. 1.

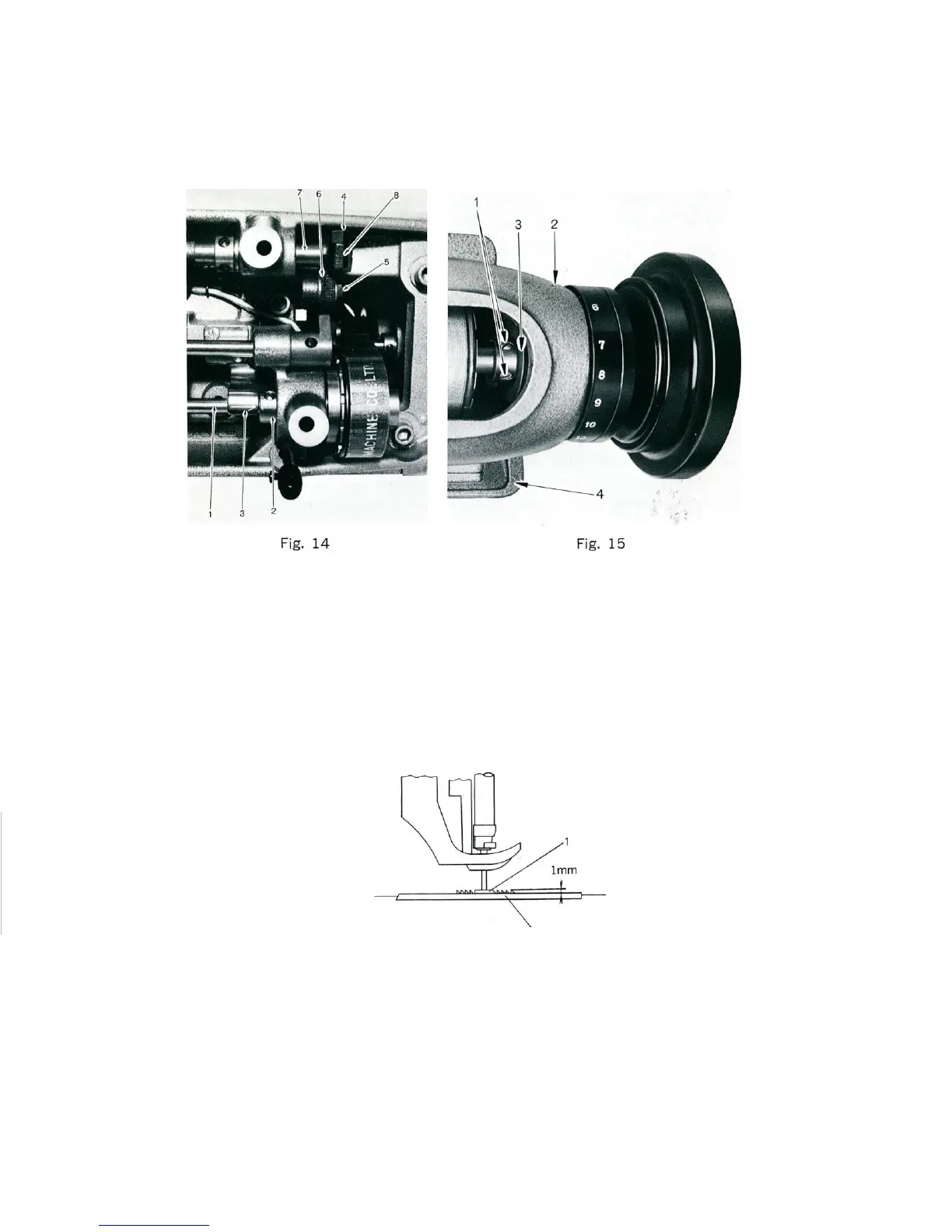

ADJUSTING THE HEIGHT OF THE FEED DOC
The maximum height of the feed dog (1) from the surface of the needle plate (2) is
normally 1 mm.
To adjust this height, tilt the machine, turn the handwheel so as to raise the feed dog to
its highest point.
Loosen the set screw (4, Fig. 3) and raise or lower the feed dog as may be required.
Then, securely tighten the set screw.
8
Fig. 15
3
