2. Hardware Installations
12
SPI-8150-LVA, SPI-8151-LVA

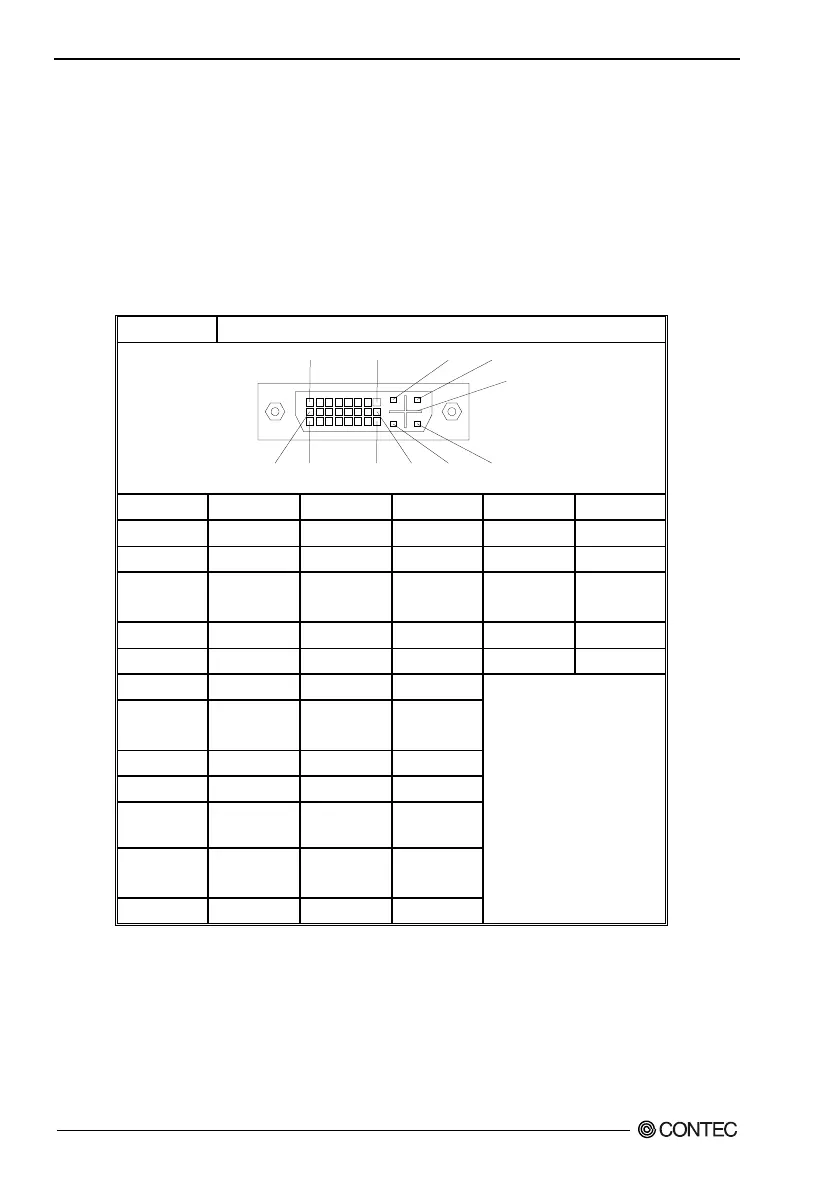

2.6 DVI Connector: CN4
CN4 is a DVI connector LCD / CRT displays. The following shows the pin
assignments of this connector.
You can use it to connect a CRT (even a DB-15 connector is acceptable by using the
bundled DVI-analog RGB adapter) or a CONTEC Panel Link display.
Connector CN4 DVI-I 29pin
1
8
17
24
16
9
C1
C2
C3
C4
C5
Pin No. Signal Pin No. Signal Pin No. Signal
1 DATA2- 13 N.C. C1 RED
2 DATA2+ 14 +5V C2 GREEN
3
DATA2
SHIELD
15 GND C3 BLUE
4 N.C. 16 HPD C4 HSYNC
5 N.C. 17 DATA0- C5 GND
6 DDC CLK 18 DATA0+
7
DDC
DATA
19
DATA0
SHIELD
8 VSYNC 20 TXD
9 DATA1- 21 RXD
10 DATA1+ 22
DATA0
SHIELD
11
DATA1
SHIELD
23 CLK+
2N.C.24CLK-
