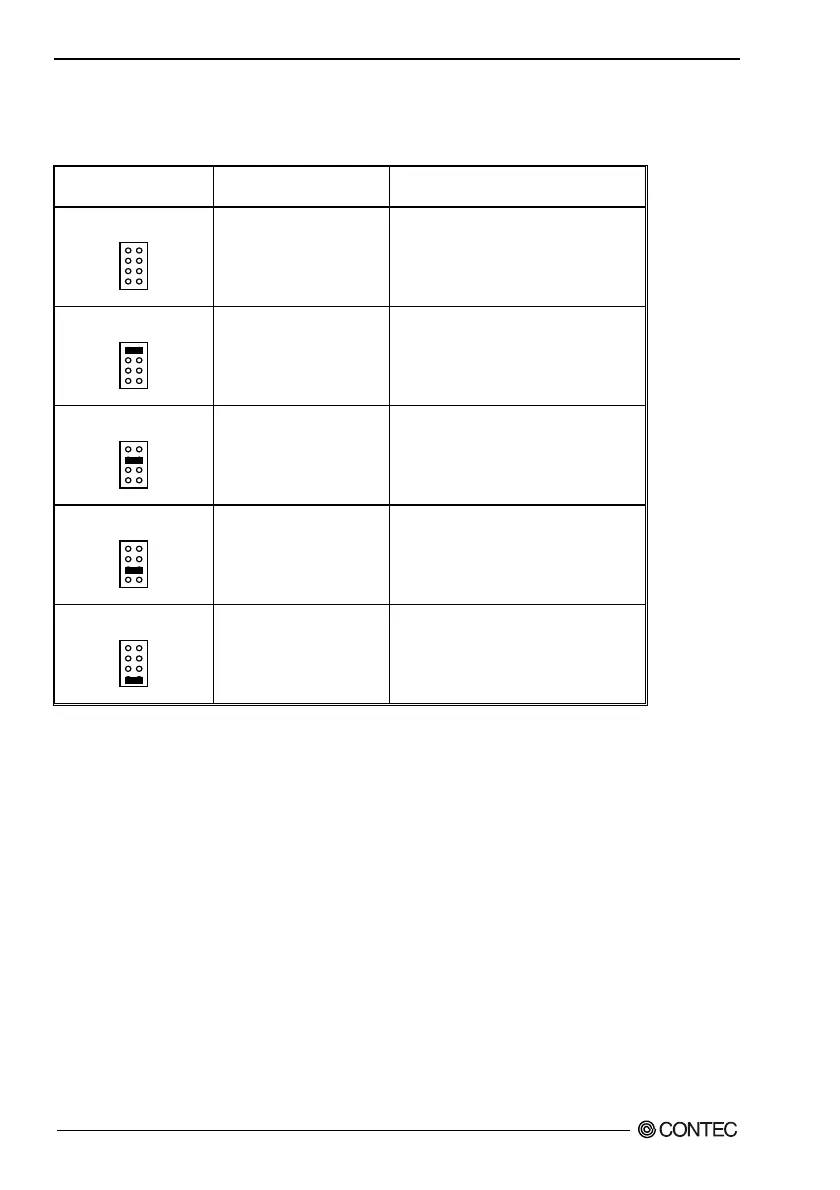

3. Jumper Setting
32
SPI-8150-LVA, SPI-8151-LVA
3.6 RS-422/485 Terminator: JP10
JP10 Terminator Function
JP10
1 2
3 4
5 6
7 8
-
No terminating resister (Default)
JP10
1 2
3 4
5 6
7 8
CTS for RS-422
terminating resister provided
JP10
1 2
3 4
5 6
7 8
RTS for RS-422
terminating resister provided
JP10
1 2
3 4
5 6
7 8
RXD for RS-422/485
terminating resister provided
JP10
1 2
3 4
5 6
7 8
TXD for RS-422/485
terminating resister provided
