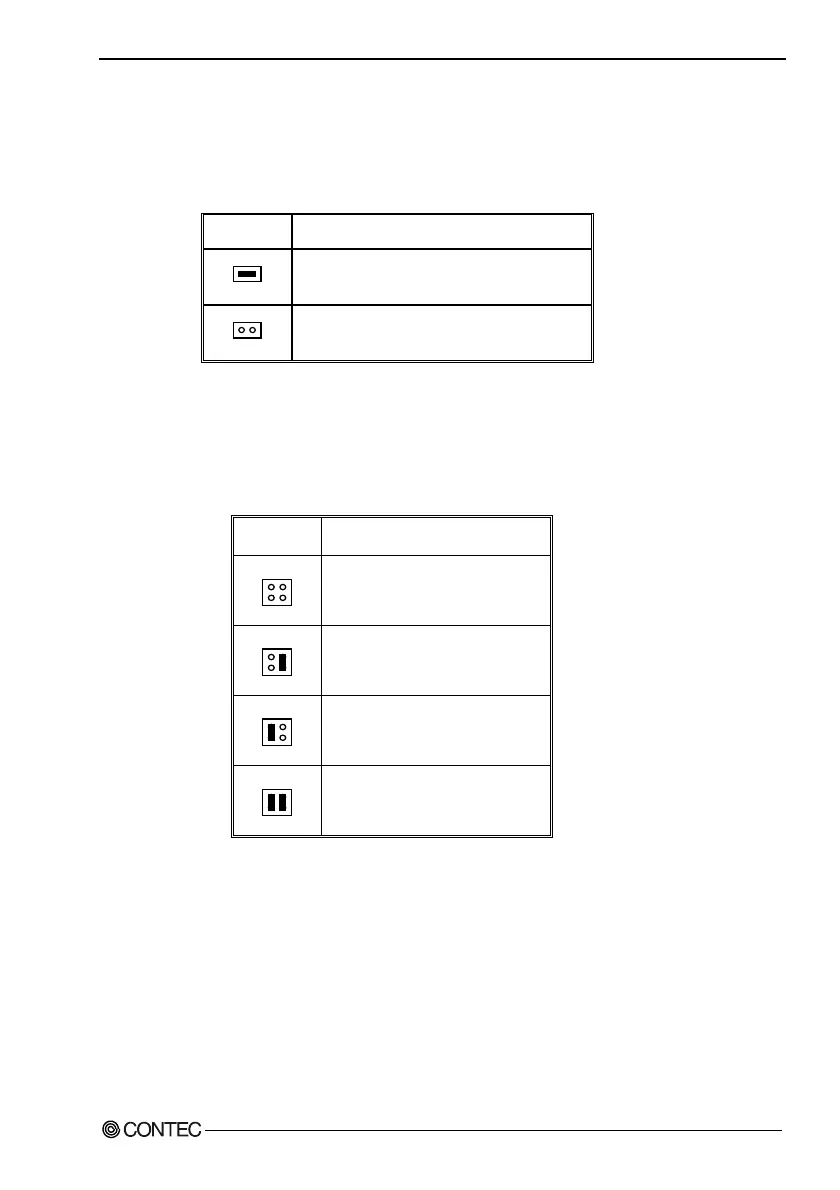

3. Jumper Setting
SPI-8150-LVA, SPI-8151-LVA
33
3.7 CF Master / Slave selector: JP11
The Master/Slave selection of the Compact Flash slot(CN12).
JP11 Function
JP11
1 2
Set to Master (Default)
JP11
1 2
Set to Slave
3.8 SSD Memory Add. Selector: JP12
JP12 is used for memory address selection of DiskOnChip. Below are 4 kinds of DiskOnChip
memory address configuration.
JP12
Function
JP12
3 1
4 2
0DC000~ 0DDFFFh
JP12
3 1
4 2
0D8000h~0D9FFFh
JP12
3 1
4 2
0D4000h~0D5FFFh
JP12
3 1
4 2
0D0000h~0D1FFFh
(Default)
