Contec SPI-8150-LLVA - Compact Flash Slot: CN12

2. Hardware Installations
SPI-8150-LVA, SPI-8151-LVA
19
2.13 Compact Flash Slot : CN12
The CPU card SPI-8150/1-LLVA provides a CompactFlash interfaces. This
interface is a very small removable mass storage device. It provide compatibility plus
TrueIDE functionality compatible with ATA/ATA-4.
This slot is connected to the Secondary IDE port. And the CF card works as the
Secondary IDE drive. When this slot is used, only 1 drive is able to connect to the Secondary
IDE connector(CN13). The Master/Slave selection of this slot with JP11.

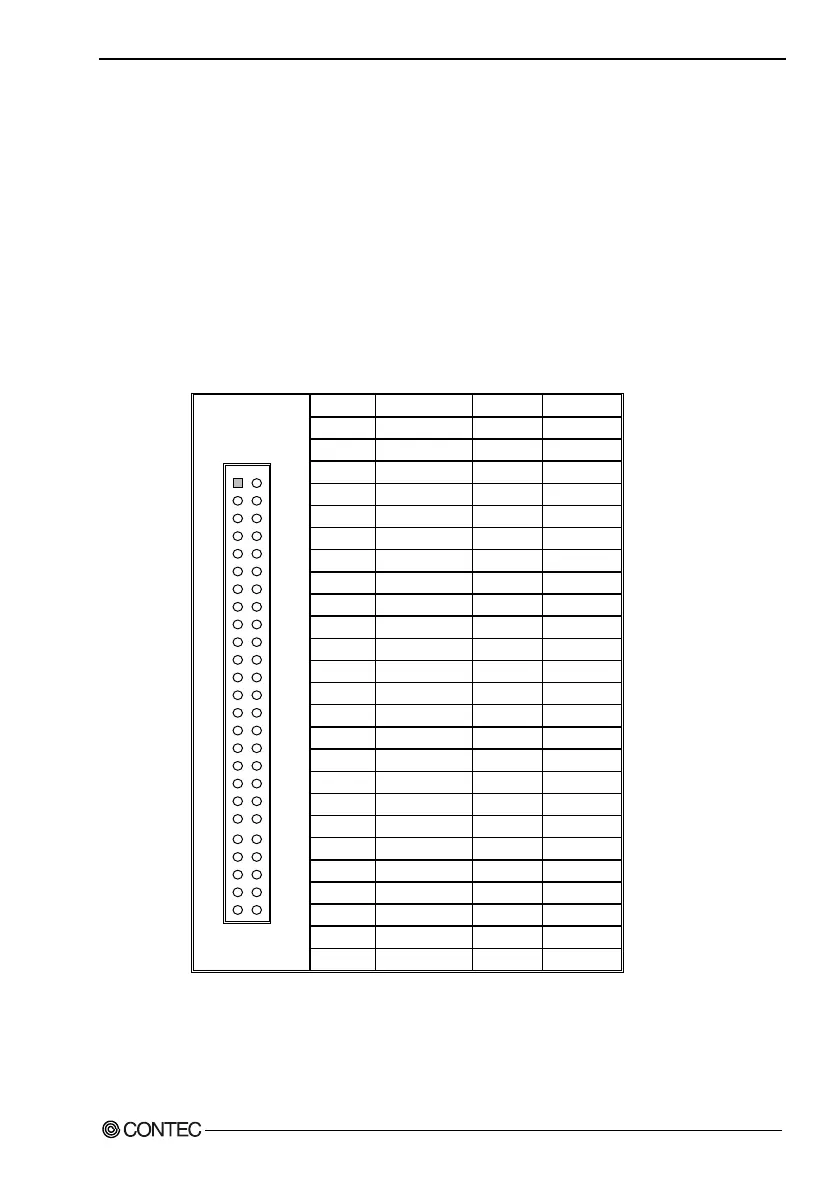

PIN No. Function PIN No. Function
1 GND 2 D3
3 D4 4 D5
5 D6 6 D7
7 CS0 8 A102
9 ATASEL# 10 A092
11 A082 12 A072
13 VCC(+5V) 14 A062
15 A052 16 A042
17 A032 18 A02
19 A01 20 A00
21 D0 22 D1
23 D2 24 N.C.
25 CD2# 26 CD1#
27 D111 28 D121
29 D131 30 D141
31 D151 32 CS11
33 VS1# 34 IOR
35 IOW 36 WE3#
37 INTQ 38 VCC(+5V)
39 CSEL# 40 VS2
41 RESET 42 IORDY
43 INPACK 44 REG3#
45 DASP# 46 PDIAG
47 D081 48 D091
CN12
1 2
49 50
49 D101 50 GND
