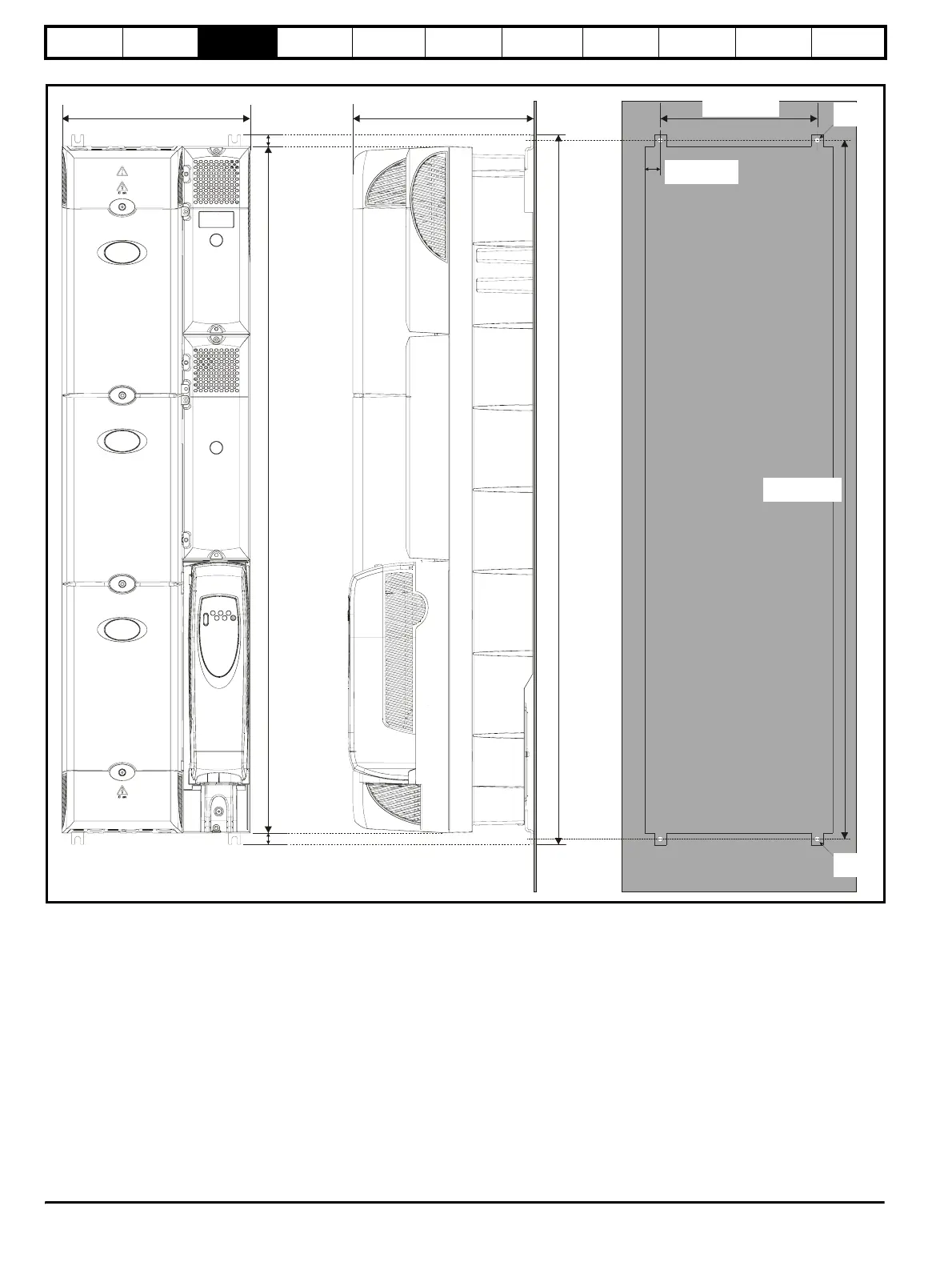

Figure 3-11 Surface mounting the size 6 drive
310mm (12.205in)
18.9mm (0.744in)
18.9mm (0.744in)
1131mm
(44.528in)
298mm (11.732in)
1168.8mm
(46.016in)
25.7 0.5mm
(1.012 0.020in)
±
±
258.6 0.5mm
(10.181 0.020in)
±
±
∅ 8.5mm
(0.335in
)
∅ 8.5mm
(0.335in
)
1150.8 ±0.5mm
(45.307 0.020in)±
