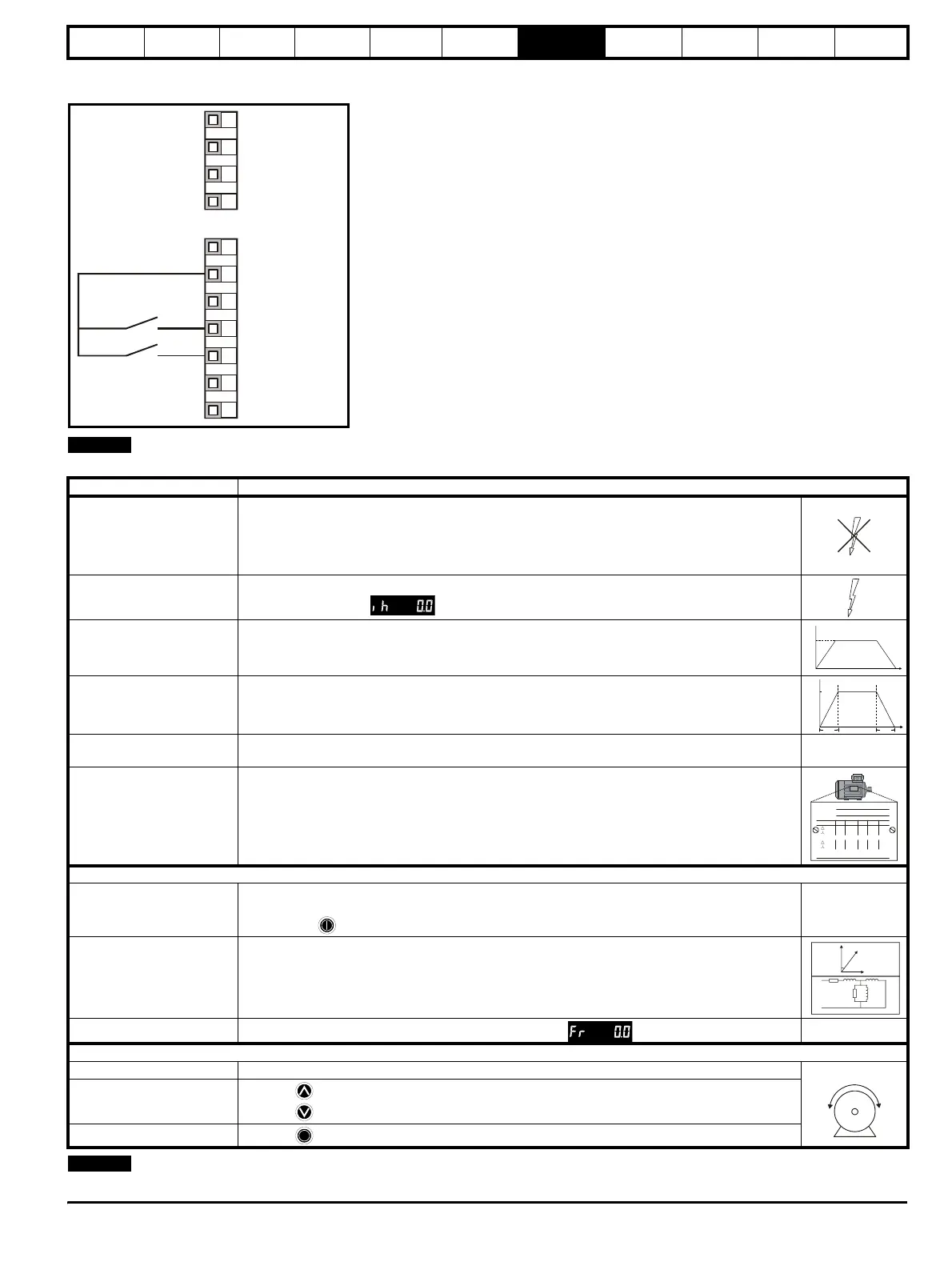

7.2 Keypad control
Figure 7-2 Minimum required control terminal connections
To implement a Forward/Reverse switch, see the Commander SK Advanced User Guide.
To implement a Forward/Reverse switch, see the Commander SK Advanced User Guide.
Action Detail
Before power up
Ensure:
• The drive enable signal is not given, terminal B4 is open
• The motor is connected to the drive
• The motor connection is correct for the drive ∆ or Y
• The correct supply voltage is connected to the drive
Power up the drive
Ensure:
• The drive displays:
Enter minimum and maximum
speeds
Enter:
• Minimum speed Pr 01 (Hz)
• Maximum speed Pr 02 (Hz)
Enter acceleration and
deceleration rates
Enter:
• Acceleration rate Pr 03 (s/100Hz)
• Deceleration rate Pr 04 (s/100Hz)
Set keypad control
Enter:
• PAd into Pr 05
Enter motor nameplate details
Enter:
• Motor rated current in Pr 06 (A)
• Motor rated speed in Pr 07 (rpm)
• Motor rated voltage in Pr 08 (V)
• Motor rated power factor in Pr 09
• If the motor is not a standard 50/60Hz motor, set Pr 39 accordingly
Ready to autotune
Enable and run the drive
Close:
• The enable signal
• Press the RUN key
Autotune
The Commander SK will carry out a non-rotating autotune on the motor.
The motor must be stationary to carry out an autotune correctly.
The drive will carry out a non-rotating autotune every time it is first started after each power-up. If this will
cause a problem for the application, set Pr 41 to the required value.
Autotune complete
When the autotune has been completed, the display will show:
Ready to run
Run The drive is now ready to run the motor.
Increasing and decreasing
speed
Press the UP key to increase the speed
Press the DOWN key to decrease the speed
Stopping
Press the STOP/RESET key to stop the motor
0V
+10V reference output
+24V output
Drive Enable/Reset
Forward/Reverse
Analogue output
(motor speed)
Digital output
(zero speed)
Not used
Not used
Not used
Not used
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
NOTE
Pr 02
t
Pr 01
100Hz
Pr 03
t
Pr 04
Mot X XXXXXXXXX
No XXXXXXXXXX kg
IP55 I.cl F C 40 s S1
°
VHzmin
-1
kW cos
φ
A
230
400
50 1445 2.20 0.80 8.50
4.90
CN = 14.5Nm
240
415
50 1445 2.20 0.76 8.50
4.90
CN = 14.4Nm
CTP- VEN 1PHASE 1=0,46A P=110W R.F 32MN
I.E.C 34 1(87)
cos
∅
σ
L
S
R
S
NOTE
