Control Techniques Commander SK4402 User Manual

Safety
Information
Product
Information
Mechanical
Installation
Electrical
Installation
Keypad and
Display
Parameters
Quick Start
Commissioning
Diagnostics Options Parameter List
UL Listing
Information
42 Commander SK Size 2 to 6 Getting Started Guide
www.controltechniques.com Issue Number: 2

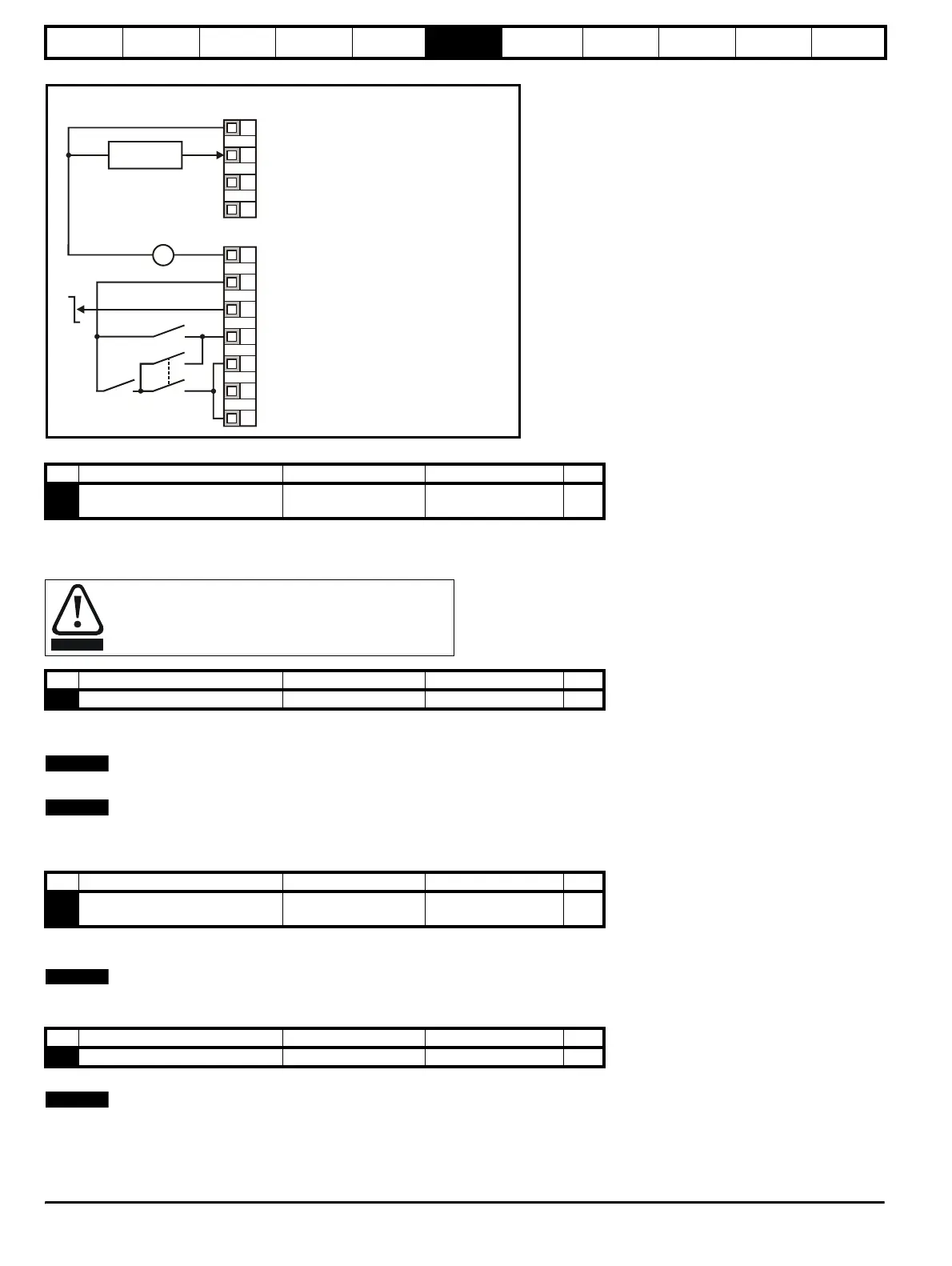

Figure 6-10 Pr 05 = HUAC terminal configuration
Enter the motor current rating (taken from the motor name plate).
The drive rated current is the 100% RMS output current value of the drive. This value can be set to a lower value but not to a higher value than the
drive rated current.
Enter the rated full load speed of the motor (taken from the motor name plate).
The motor rated speed is used to calculate the correct slip speed for the motor.
A value of zero entered into Pr 07 means slip compensation is disabled.
If the full load speed of the motor is above 9999rpm, enter a value of 0 in Pr 07. This will disable slip compensation as values >9999 cannot be
entered into this parameter.
Enter the motor rated voltage (taken from the motor name plate).
This is the voltage applied to the motor at base frequency.
If the motor is not a standard 50 or 60Hz motor, see Pr 39 on page 47 and adjust accordingly.
Enter the motor rated power factor cos ϕ (taken from the motor name plate).
The power factor value could be automatically changed after a rotating autotune. See Pr 38 on page 47.
No Function Range Defaults Type
06 Motor rated current
0 to Drive rated current
A
Drive rating RW
Pr 06 Motor rated current must be set correctly to avoid a
risk of fire in the event of a motor overload.
No Function Range Defaults Type
07 Motor rated speed 0 to 9999 rpm Eur: 1500, USA: 1800 RW
0V
Remote current speed
reference input (A1)
+10V reference output
Not used
+24V output
Drive enable / reset
(USA:/Stop)
Run reverse
(USA: Jog)
Reference
se
l
ec
t
Remote speed
reference input
V
_
+
Eur
Analogue output
(motor speed)
Digital output
(zero speed)
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
+24V
0V
Auto
run
Hand/Off/Auto
switch
H
A
A
Run forward
(USA: Run)
H: Contacts made in 'hand' position -
Keypad control
A: Contacts made in 'auto' position -
Remote current speed reference input
WARNING
NOTE
NOTE
No Function Range Defaults Type
08 Motor rated voltage
0 to 240V, 0 to 480V,
0 to 575V, 0 to 690V
Eur: 230/400/575/690
USA: 230/460/575/690
RW
NOTE
No Function Range Defaults Type
09 Motor power factor 0 to 1 0.85 RW
NOTE
