21

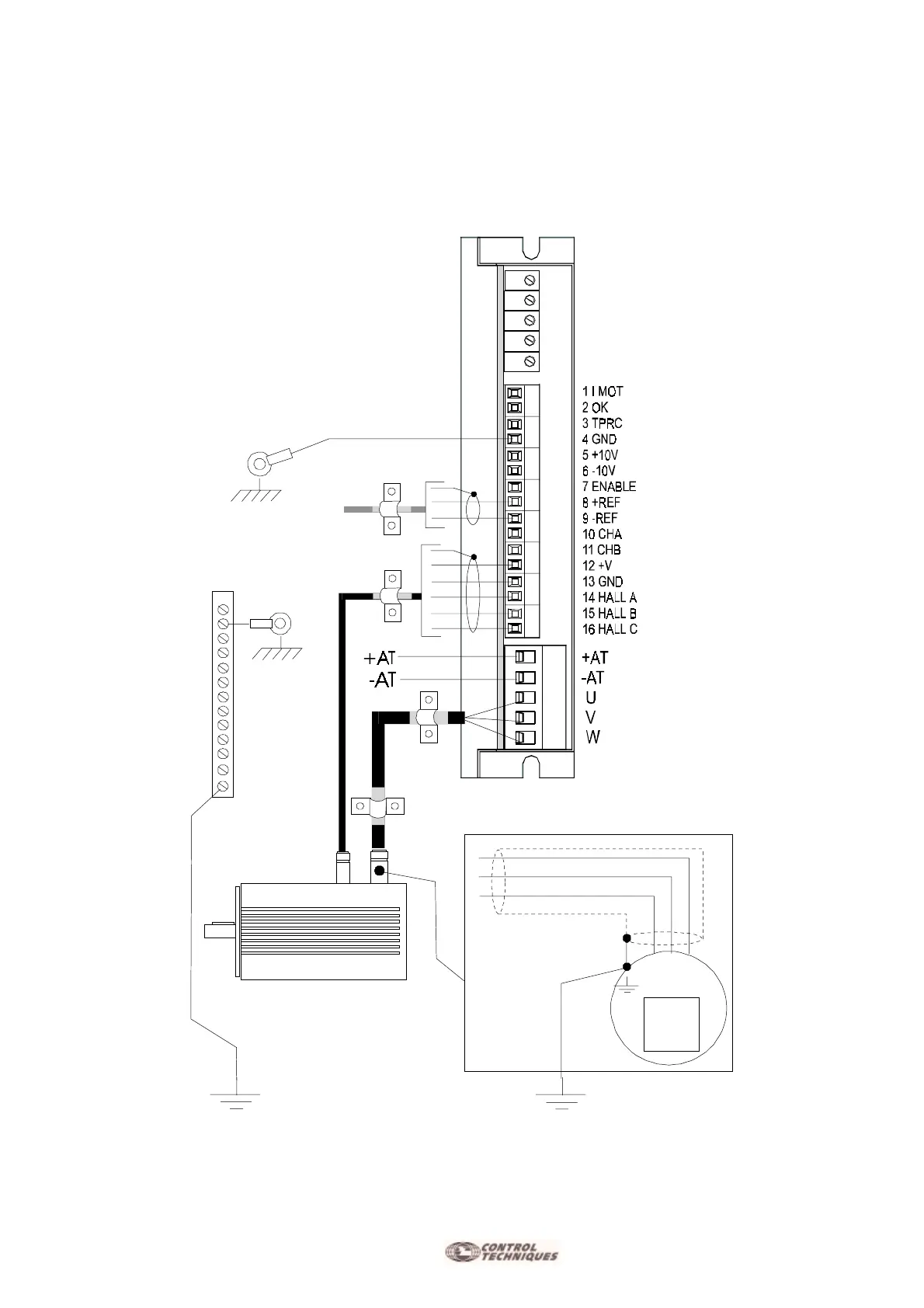

3.5 Connecting Ground and Screen.
Connect the GND signal to the ground point nearest the drive.
Ground Box
Connection inside motor
Brushless
Motor
Eart Earth
U V W
1
+REF
-R EF
M
