22

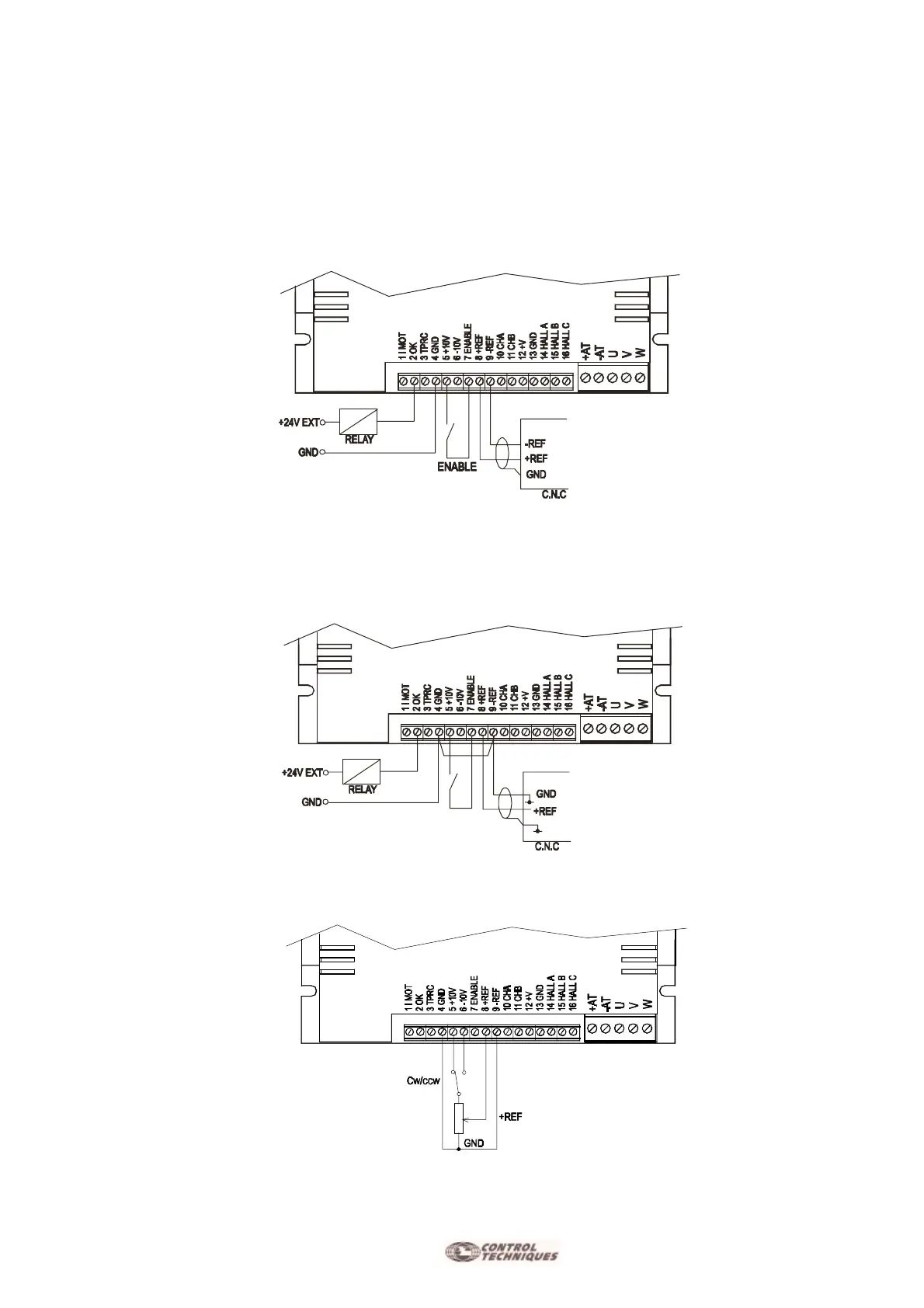

3.6 Examples of Signal Connections
The following design shows an application utilizing a differential reference from C.N.C..
Enabling the drive is done using the Auxilary power supply +10V (Connector 5). It is possible to use a
external power supply for this function (24V DC). Remember to also lik the GND of the power supply to
Connector 4.
It's also possible to Enable the drive using negative logic.
On connector 2 "OK" an external relay coil was connected. This exit has a max. output of @50mA. Do Not
connect current exceeding 24Vdc. Link the Power Supply GND externally using connector 4.
The following design shows an application using speed reference connections in the Common Mode.
The following figure shows an application with speed reference connections using an internal MiniAx power
supply.
The speed potentiometer must have an included value between 5 and 47Kohm.
