Control Techniques MiniAx 60 x 5/10 User Manual

25

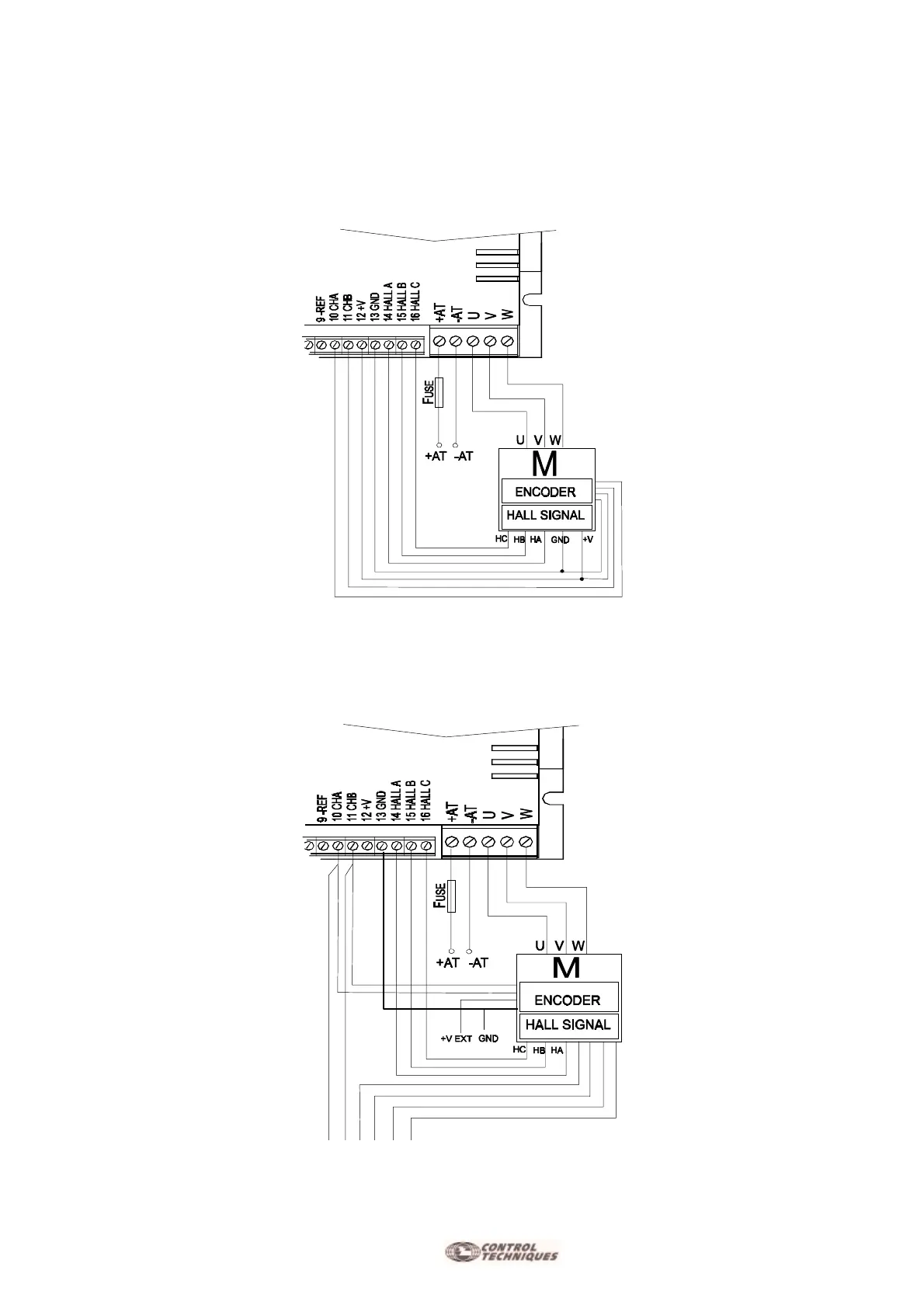

Hall Sensor + Encoder Connections
The following design shows typical connections between the drive and a brushless motor. In such
configuration, Hall effect + Incremental type Encoder, A and B signals are used.
The Encoder and Hall Sensor power supply's come from the terminal +V (12) .
Encoder Connection with External Power Supply
The figure below shows a MiniAx with Hall and Encoder signals supplied externally.
The Zero of such an external power supply must be linked to the drives GND.
•
A B C A/ B/ C/
TO REMOTE
CONTROL
