3.9 Baffle plates
When a Unidrive size 1 to 4 is through-panel mounted, the fitting of a
baffle plate causes the heatsink to act as a chimney; this enhances the
air flow along the heatsink fins to aid cooling (this naturally occurs when
the drive is surface mounted).
You may make a baffle plate from any suitable conducting or non-
conducting material and attach it to the heatsink by the method
described as follows.

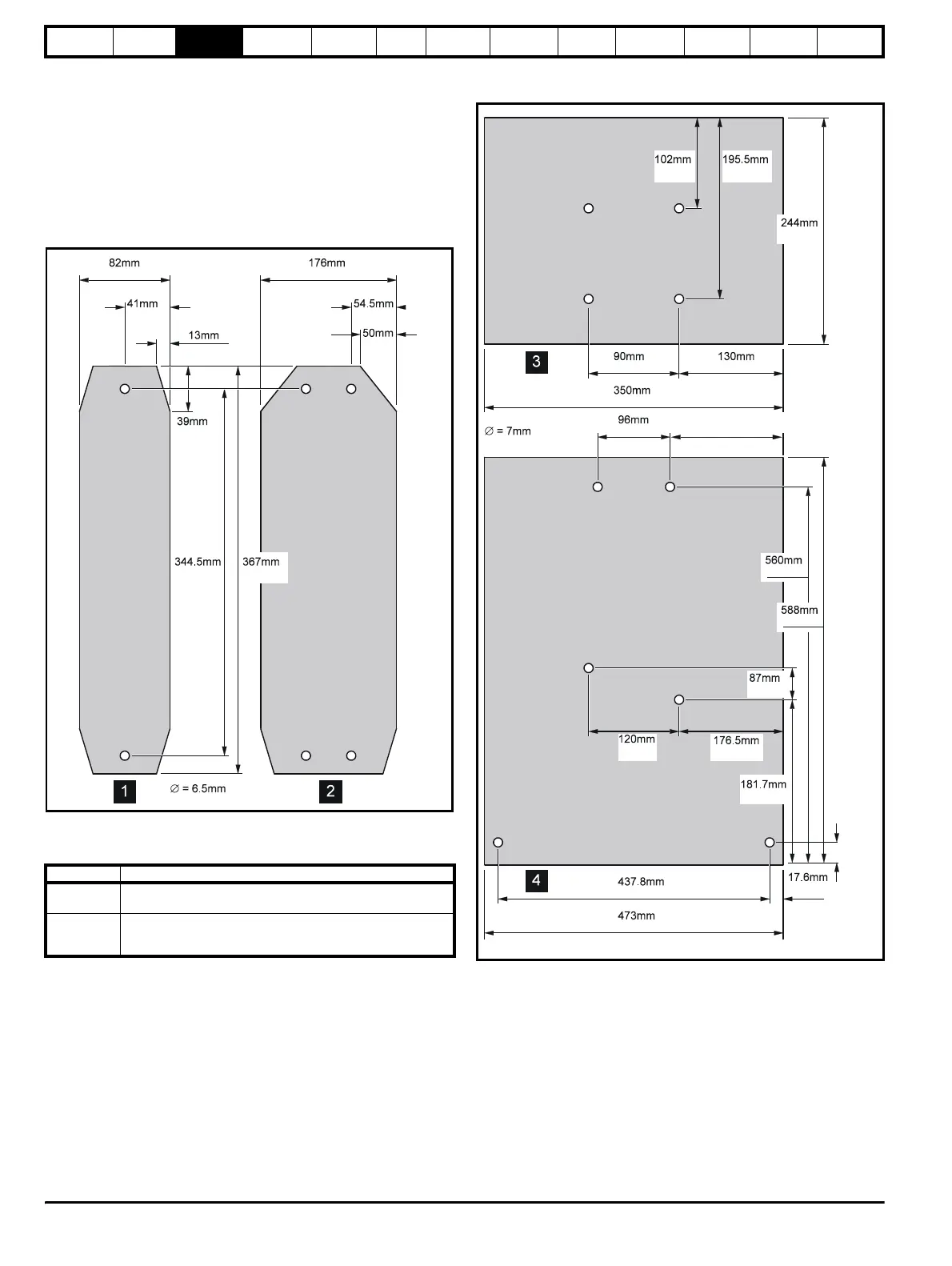

Figure 3-19 Dimensions for the fabrication of baffle plates for
model sizes 1 and 2
Attaching a fabricated baffle plate to the heatsink
Table 3-2 Methods of attaching the baffle plate
Figure 3-20 Dimensions for the fabrication of baffle plates for
model sizes 3 and 4
3.10 Ambient temperature
The maximum ambient temperature under which the drive can operate
without derating is 40°C.
Derating can be applied to allow operation up to 50°C ambient
temperature.
Please see section 11.1.1 Power and current ratings on page 190 if
derating is required.
Model size Method of attachment
1
2
Use the surface mounting brackets.
3
4
Use M6 x 12mm max (or equivalent) thread-forming screws to
screw into the holes in the heatsink, or tap the holes to a suitable
thread size.
