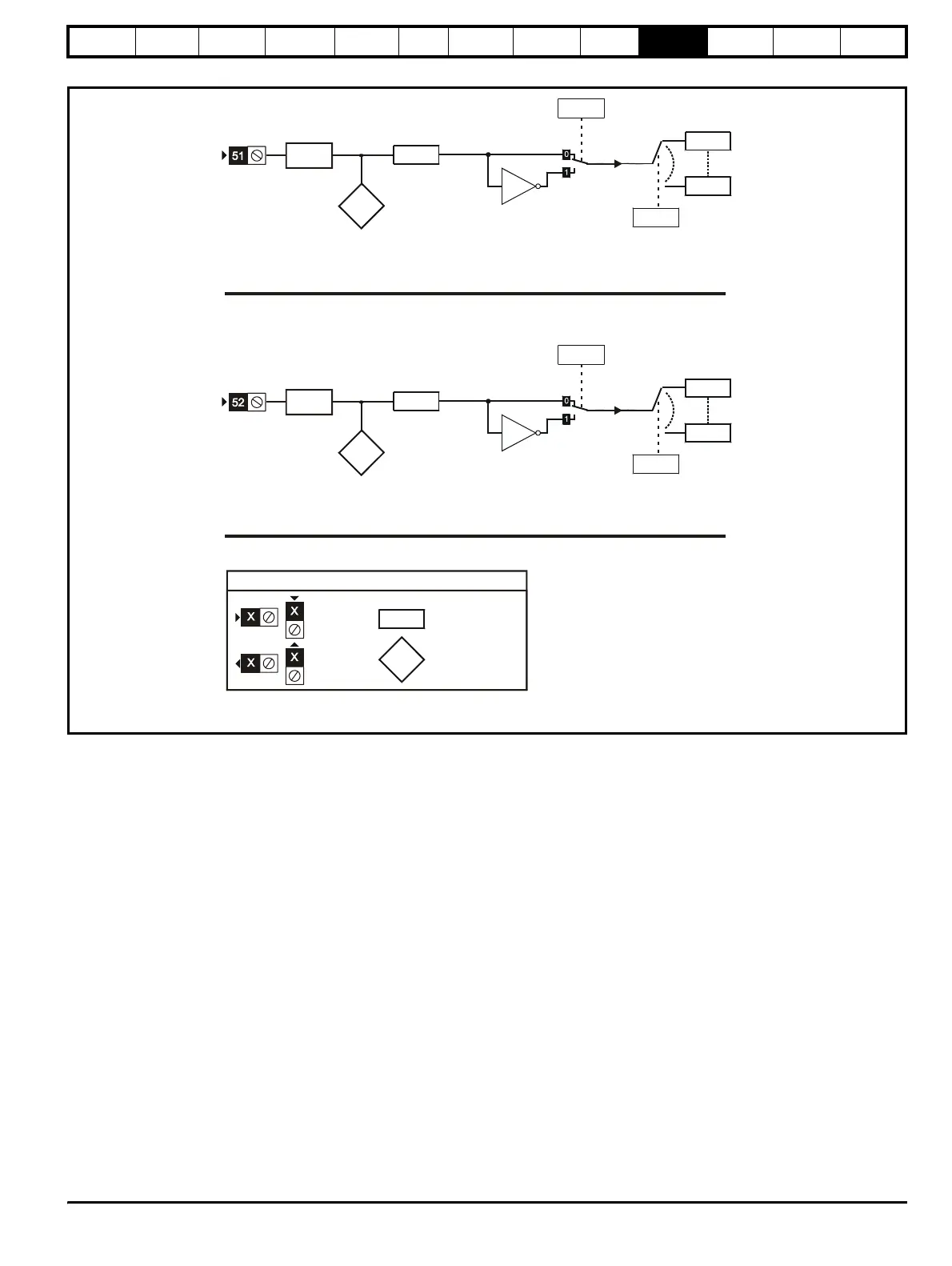

Figure 10-22 Menu 16 UD50 logic diagram, part 3
x(-1)
16.13
??.??
??.??
All parameters are shown
at their default setting
Analog input
destination parameter
Any unprotected
variable parameter
Analog input
scaling
Analog input
invert
16.15
16.14
16.04
Analog input
level
66
Analog input 4
A/D
x(-1)
16.16
??.??
??.??
All parameters are shown
at their default setting
Analog input
destination parameter
Any unprotected
variable parameter
Analog input
scaling
Analog input
invert
16.18
16.17
16.05
Analog input
level
66
Analog input 5
A/D
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
