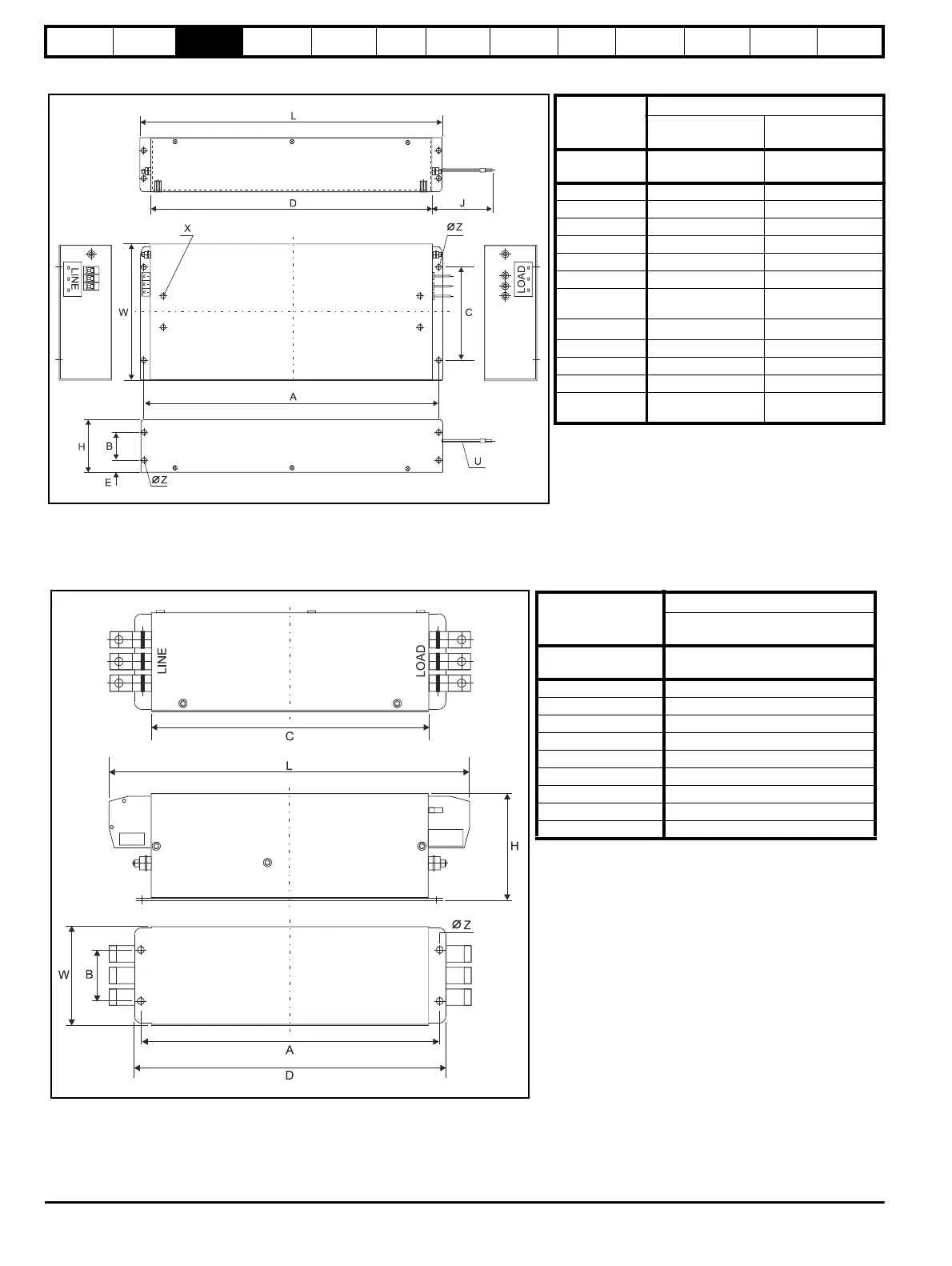

Figure 3-25 Unidrive size 2 footprint or bookcase mounted filters
3.11.3 Unidrive size 3 and 4 filters
Ensure the LOAD terminals face the drive.
Dimension
RFI Filters
4200-6108
FS5106-16-07
4200-6113
FS5106-25-07
Model
UNI2201 to UNI2202
UNI2401
UNI2203
UNI2402 to UNI2403
A 385mm (15.157in) 385mm (15.157in)
B 35mm (1.378in) 35mm (1.378in)
C 120mm (4.724in) 120mm (4.724in)
D 364mm (14.331in) 364mm (14.331in)
E 16.5mm (0.650in) 16.5mm (0.650in)
H 68mm (2.677in) 68mm (2.677in)
J
300mm ±5mm
(11.811in ±0.197in)
300mm ±5mm
(11.811in ±0.197in)
U
3x 4mm
2
(AWG12) 3x 4mm
2
(AWG12)
W 180mm (7.087in) 180mm (7.087in)
X M6 (4x) M6 (4x)
Z 5.5mm (0.217in) 5.5mm (0.217in)
Ground
Terminal
M5 M5
Dimension
RFI Filter
4200-6116
FS5113-50-53
Model
UNI3201 to UNI3202, UNI3401 to
UNI3403
A 275mm (10.827in)
B 50mm (1.969in)
C 259.5mm (10.217in)
D 290mm (11.417in)
H 100mm (3.937in)
L 337mm (13.268in)
W 90mm (3.543in)
Z 7mm (0.276in)
Ground Terminal M5
Figure 3-26 Unidrive size 3 (UNI3201 to UNI3202, UNI3401 to UNI3403) bookcase mounted filter
